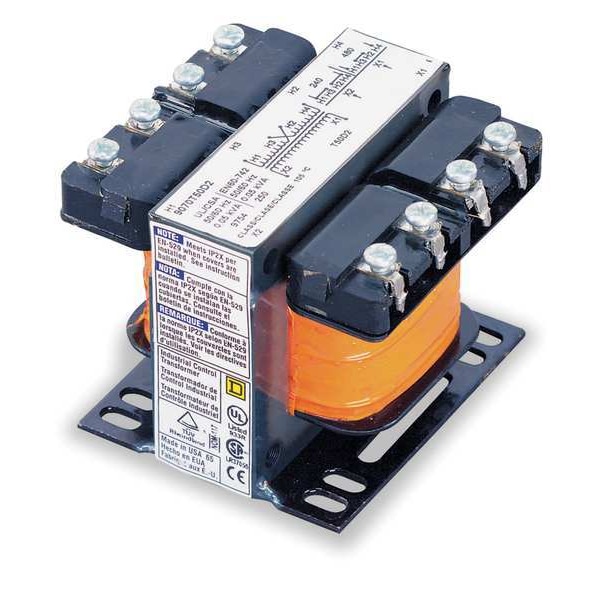

Control Transformer, 75 VA, Not Rated, 55°C, 24V AC, 240/480V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 240/480V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Fused | No |
| Manufacturers Warranty Length | 10 yr |
| Phase - Electrical | 1 |
| Height | 4.43 in |
| Enclosure Finish | Epoxy Resin Varnish |
| VA Rating - Transformer | 75 VA |
| Enclosure Style - Transformer | Open |
| Depth | 3.38 in |
| Width | 3.34 in |
| Temp. Rise | 55 deg C |
| Standards | CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239 |
| Protective Device | None |
| Output Voltage - Transformer | 24V AC |
| Includes | Not Applicable |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Enclosure Type | Open |
| Insulation Max. Temp. | 105 °C |
| Enclosure Rating | Not Rated |
| Material | Copper: winding |
| Winding Material - Transformer | Copper |
| Primary Connection | Screw clamp terminals |
| Secondary Connection | Screw clamp terminals |
| Fingersafe Cover Compatibility | FSC1 |
| Certifications | UL listed file E61239; CSA file LR37055 guide 184-N-90 |
| Insulation Temperature | 221°F |
| Primary To Secondary Voltage | 240 x 480 V 24 V |
| Package Quantity | 1 |
