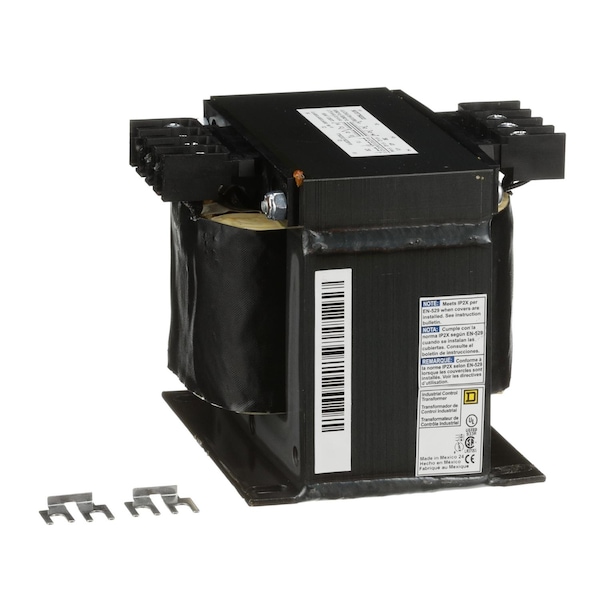

Control Transformer, 750 VA, Not Rated, 115°C, 115/230V AC, 380/400/415V
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 380/400/415V |
| Manufacturers Warranty Length | 1 yr |
| VA Rating - Transformer | 750 VA |
| Temp. Rise | 115 deg C |
| Width | 5-1/4 in |
| Standards | CSA file LR37055 guide 184-N-90; UL listed file E61239 |
| Output Voltage - Transformer | 115/230V AC |
| Depth | 5.61 in |
| Height | 4.51 in |
| Phase - Electrical | 1 |
| Green Environmental Attribute | Mercury Free; Pvc Free |
| Material | Copper: winding |
| Insulation Max. Temp. | 180 °C |
| Secondary Connection | Screw clamp terminals |
| Primary Connection | Screw clamp terminals |
| Winding Material - Transformer | Copper |
| Enclosure Rating | Not Rated |
| Enclosure Type | Open |
| Fingersafe Cover Compatibility | FSC2 |
| Primary To Secondary Voltage | 380/400/415 V 115/230 V |
| Insulation Temperature | 356°F |
| Nema Degree of Protection | not rated (open device) |
| Rated Power In Va | 750 VA UL, 750 VA CSA, 750 VA NOM, 500 VA CE |
| Range of Product | T |
| Pvc Free | Yes |
| Package Quantity | 1 |
