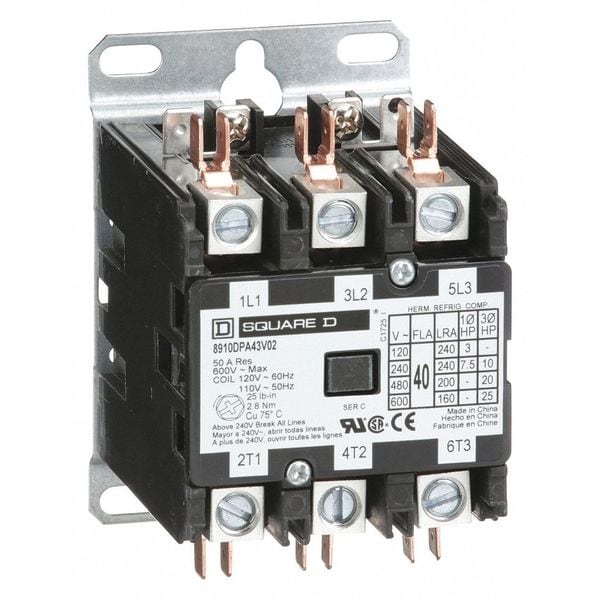

Contactador magnético para un propósito definido, 3 polos, 40 A amperios de carga completa inductiva, 120V CA, 50/60 Hz.
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 40 A |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 50 A |
| Number of Poles | 3 |
| Coil Volts | 120V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 3 hp |
| HP @ 1 Phase - 230V | 7.5 |
| HP @ 3 Phase - 230V | 10 |
| HP @ 1 Phase - 240V | 7 1/2 hp |
| Height | 4 in |
| Width | 2-1/2 in |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 575V | 20 hp |
| Depth | 3.12 in |
| HP @ 3 Phase - 480V | 20 hp |
| Enclosure NEMA Rating | No Enclosure |
| Includes | Quick Connect Terminal |
| Hz | 50/60 |
| Enclosure Type | Open |
| Series | 8910 Series Type DPA |
| Standards | CSA, RoHS, UL Listed |
| Weight | .45 kg || .99 lb(US) |
| Phase | Three |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Number of Normally Open Main Contacts | 3 |
| Mounting Hole Diameter | 0.2 in |
| Overall Width | 2.37 in |
| Includes Shunt | Not Applicable |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Reversing Capability | Non-Reversing |
| Contactor Style | HVACR Definite Purpose Contactor |
| Coil Voltage | 110/120V AC |
| NEMA Enclosure Material | Not Applicable |
| Frame Size | Not Applicable |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| Full Load Current - Inductive | 40 A |
| Horsepower @ Three Phase - 480V AC | 20 HP |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Maximum Voltage Rating | 600 V AC |
| LED Lighting Current Rating | Not Applicable |
| Overall Depth | 2.9 in |
| Mounting Hole Distance - Height | 3-1/4 in |
| Locked Rotor Load | 160 A @ 575V AC, 200 A @ 460V AC, 240 A @ 277V AC |
| Overall Height | 2.31 in |
| Full Load Current - Resistive | 50 A |
| Frequency | 50/60 Hz |
| Fluorescent Lighting Current Rating | Not Applicable |
| Terminal Connection Type | Terminals, Box Lugs |
| Tungsten Lighting Current Rating | Not Applicable |
| Mounting Hole Distance - Width | 2 in |
| NEMA Enclosure Rating | No Enclosure |
| Product Certifications | UL Recognized; CSA |
| Rated Operational Voltage | 600 V AC |
| Electrical Connection | Quick connect terminals; Box lugs |
| Maximum Horse Power Rating | 3 hp 115 V AC, 1 phase; 7.5 hp 230 V AC, 1 phase; 10 hp 230 V AC, 3 phase; 20 hp 460 V AC, 3 phase; 25 hp 575 V AC, 3 phase |
| Control Circuit Voltage | 120 V AC 60 Hz; 110 V AC 50 Hz |
| Product Or Component Type | Definite Purpose Contactor |
| Pole Contact Composition | 3 NO |
| Locked Rotor Rated Current | 240 A 277 V AC; 200 A 460 V AC; 160 A 575 V AC |
| Package Quantity | 1 |
