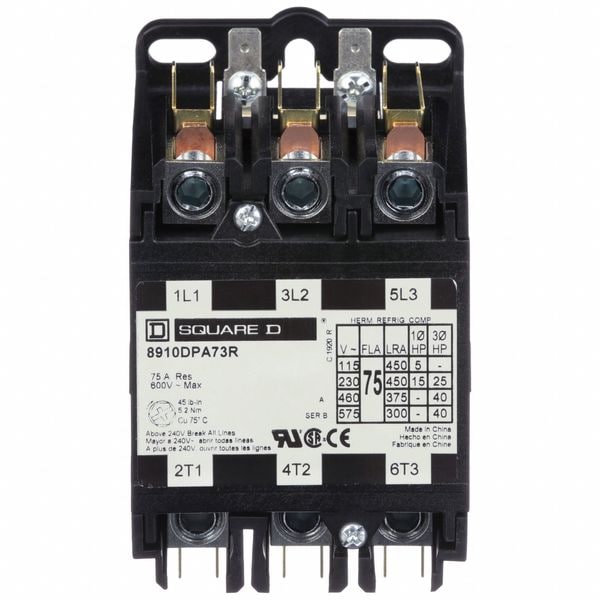

Contacto de propósito definido, 220/208-240VAC, 3P, 75A
| Item | Definite Purpose Contactor |
|---|---|
| Number of Poles | 3 |
| Full Load Amps-Inductive | 75 A |
| Full Load Amps-Resistive | 94 A |
| Coil Volts | 208/240 V AC |
| HP @ 1 Phase - 120V | 5 hp |
| HP @ 1 Phase - 240V | 15 hp |
| HP @ 3 Phase - 240V | 25 hp |
| HP @ 3 Phase - 480V | 40 hp |
| HP @ 3 Phase - 575V | 40 hp |
| Height | 3.65 in |
| Width | 4.1 in |
| Depth | 2.56 in |
| Standards | CSA, EU RoHS, REACH, UL Listed |
| Hz | 50/60 |
| Series | 8910 Series Type DPA |
| Phase | Three |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 600V AC | 40 HP |
| Coil Voltage | 220/208-240V AC |
| Horsepower @ Three Phase - 480V AC | 40 HP |
| Horsepower @ Single Phase - 120V AC | 5 HP |
| Terminal Connection Type | Terminals, Box Lugs |
| LED Lighting Current Rating | Not Applicable |
| Overall Width | 4.1 in |
| Includes Shunt | Not Applicable |
| Maximum Voltage Rating | 600 V AC |
| NEMA Enclosure Rating | No Enclosure |
| Overall Height | 3.65 in |
| Locked Rotor Load | 300 A @ 575V AC, 375 A @ 460V AC, 450 A @ 277V AC |
| Frame Size | Not Applicable |
| Full Load Current - Resistive | 94 A |
| Reversing Capability | Non-Reversing |
| Horsepower @ Single Phase - 240V AC | 15 HP |
| Overall Depth | 2.56 in |
| Full Load Current - Inductive | 75 A |
| Tungsten Lighting Current Rating | Not Applicable |
| Fluorescent Lighting Current Rating | Not Applicable |
| Contactor Style | HVACR Definite Purpose Contactor |
| Number of Normally Open Main Contacts | 3 |
| Horsepower @ Three Phase - 240V AC | 25 HP |
| Package Quantity | 1 |
