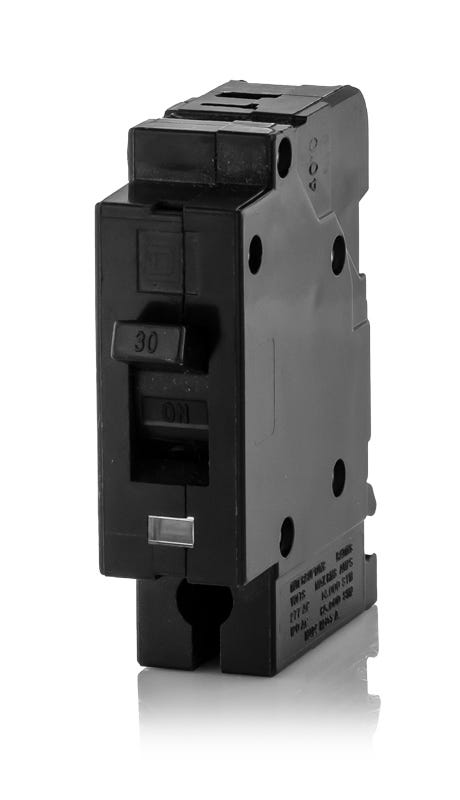

The Square D EH14030 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 277VAC. It has an interrupting rating of 14kA at 277VAC, 65kA at 120VAC. The EH14030 has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | EH |
| Amperage | 30 |
| Voltage | 277VAC |
| Poles | 1 |
| Phase | 1 |
| Interrupting Rating | 14kA at 277VAC, 65kA at 120VAC |
| Frame Type | EH |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Wire Gauge | 14 to 8 AWG AL/CU |
| For Use With | NEH Panelboard |
| Temperature Rating | 40°C |
| Mpn | EH14030 |
