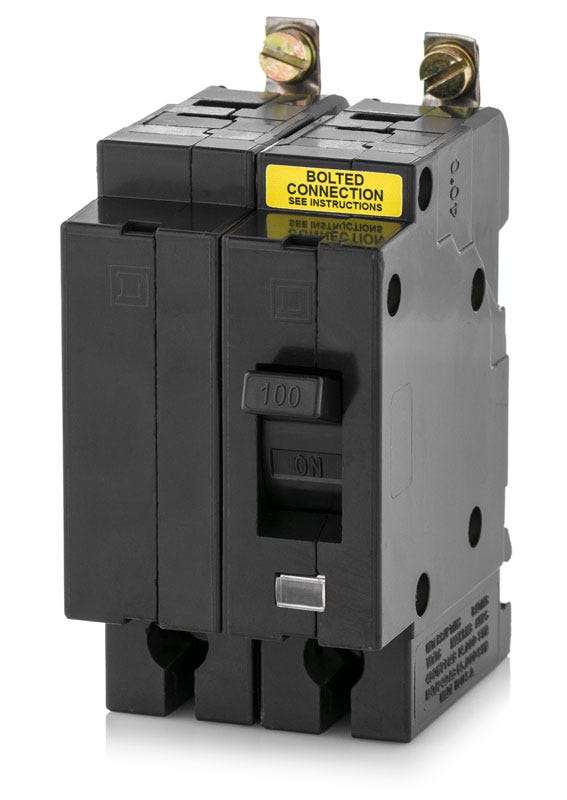

The Square D EHB24100 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 100 Amps and a voltage rating of 277/480VAC. It has an interrupting rating of 14kAIC at 277V. The EHB24100 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | EHB |
| Amperage | 100 |
| Voltage | 277/480VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL, CSA |
| Interrupting Rating | 14kAIC at 277V |
| Frame Type | EH |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Temperature Rating | 40 °C |
| Mpn | EHB24100 |
| Upc | 785901586760 |
| Gtin | 785901586760 |
