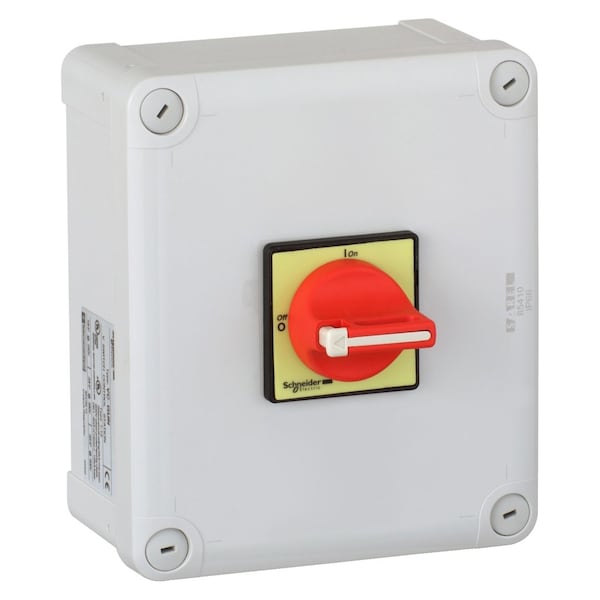

Interruptor de desconexión cerrado, 45 A, 690V CA, 3 polos.
| Item | Enclosed Disconnect Switch |
|---|---|
| Amps | 45 |
| Voltage | 690 V AC |
| Number of Poles | 3 |
| Width | 164 mm |
| Depth | 132 mm |
| Standards | IEC 60947-4-1 || CSA C22.2 No 14 || UL 508 || IEC 60204 |
| Height | 193 mm |
| Mechanical Durability | 30,000 cycle |
| Electrical Durability | 30000 cycles AC-21 || 30000 cycles DC-1...5 |
| Rated Conditional Short-Circuit Current | 10 kA 400 V 63 A aM || 10 kA 400 V 63 A gG |
| Nema Degree Of Protection | NEMA 12 |
| Protective Treatment | TC |
| Base Dimension | 60 mm x 60 mm |
| Poles Description | 3P |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Mechanical Robustness | vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Fire Resistance | 960°C IEC 60595-2-1 |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Marking | 0 - 1 |
| Intermittent Duty Class | 30 |
| Ambient Air Temperature For Operation | -20-50°C |
| Performance Level | high performance |
| [Ie] Rated Operational Current | 41.5 A AC-23A)400 V |
| [Icm] Rated Short-Circuit Making Capacity | 2.1 kA 400 V at Ipeak |
| Environmental Characteristic | standard environment |
| Making Capacity | 630 A 400 V AC-21A || 630 A 400 V AC-22A || 630 A 400 V AC-23A |
| Tightening Torque | 4-4 N.m screw clamp terminals |
| Product Name | TeSys VARIO |
| Rated Operational Power In W | 22 kW 400 V AC-23) || 18.5 kW 400 V AC-3) |
| Handle Colour | red |
| [Icw] Rated Short-Time Withstand Current | 756 A 400 V 1 s |
| Product Or Component Type | enclosed emergency stop switch disconnector |
| Control Type | rotary handle |
| Device Short Name | VC-GUN |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Range | TeSys |
| Suitability For Isolation | yes |
| Rated Power In Hp | 10 hp 240 V, UL || 20 hp 480 V, UL || 30 hp 600 V, UL |
| Connections - Terminals | screw clamp terminals 25-25 mm² solid - with cable end || screw clamp terminals 16-16 mm² flexible |
| Handle Front Plate Colour | yellow |
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
| Breaking Capacity | 500 A 400 V AC-21A) || 500 A 400 V AC-22A) || 500 A 400 V AC-23A) |
| [Ithe] Conventional Enclosed Thermal Current | 50 A, 50.0 A IEC 690 V || 45 A UL 600 V |
| Conventional Enclosed Thermal Current | 50 A |
| Conventional Free Air Thermal Current | 50.0 A IEC 690 V; 45 A UL 600 V |
| Rated Conditional Short Circuit Current | 10 kA 400 V 63 A aM; 10 kA 400 V 63 A gG |
| Package Quantity | 1 |
