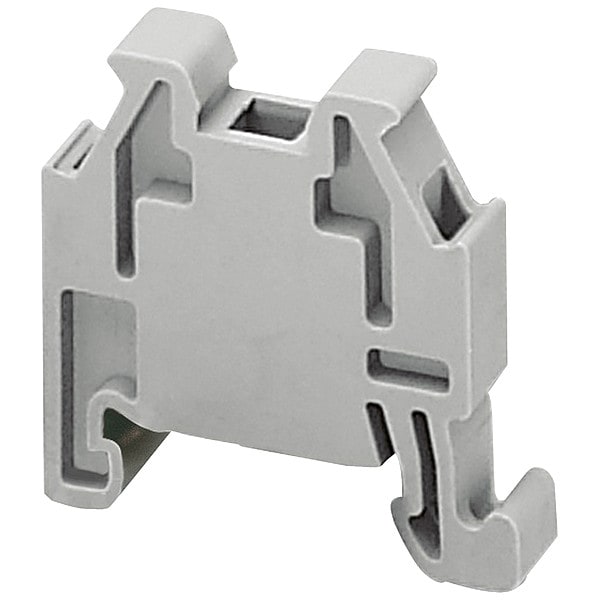

End Bracket, TRR, Plastic, Clip-On Mount
| Item | End Bracket |
|---|---|
| Length | 22 mm |
| Thickness | 0.2047 in |
| Material | Plastic |
| Standards | China RoHS Regulation, EU RoHS Directive, REACH Regulation |
| Color | Gray |
| Overall Width | 2.91 in |
| Compatible Manufacturer Model Number | NSYTRADR155 |
| Compatible with Series | TRR |
| Overall Depth | 0.2 in |
| Compatible with Product Type | 15 mm Din Rails |
| Overall Length | 0.87 in |
| RoHS Compliant | Yes |
| Accessory / Separate Part Category | mounting accessory |
| Mounting Mode | clip-on |
| Product Compatibility | TRR spring terminal terminal block, length = 32 mm |
| Range | Linergy |
| Device Short Name | TRA |
| Product Or Component Type | end stop |
| Product Name | TR |
| Package Quantity | 1 |
