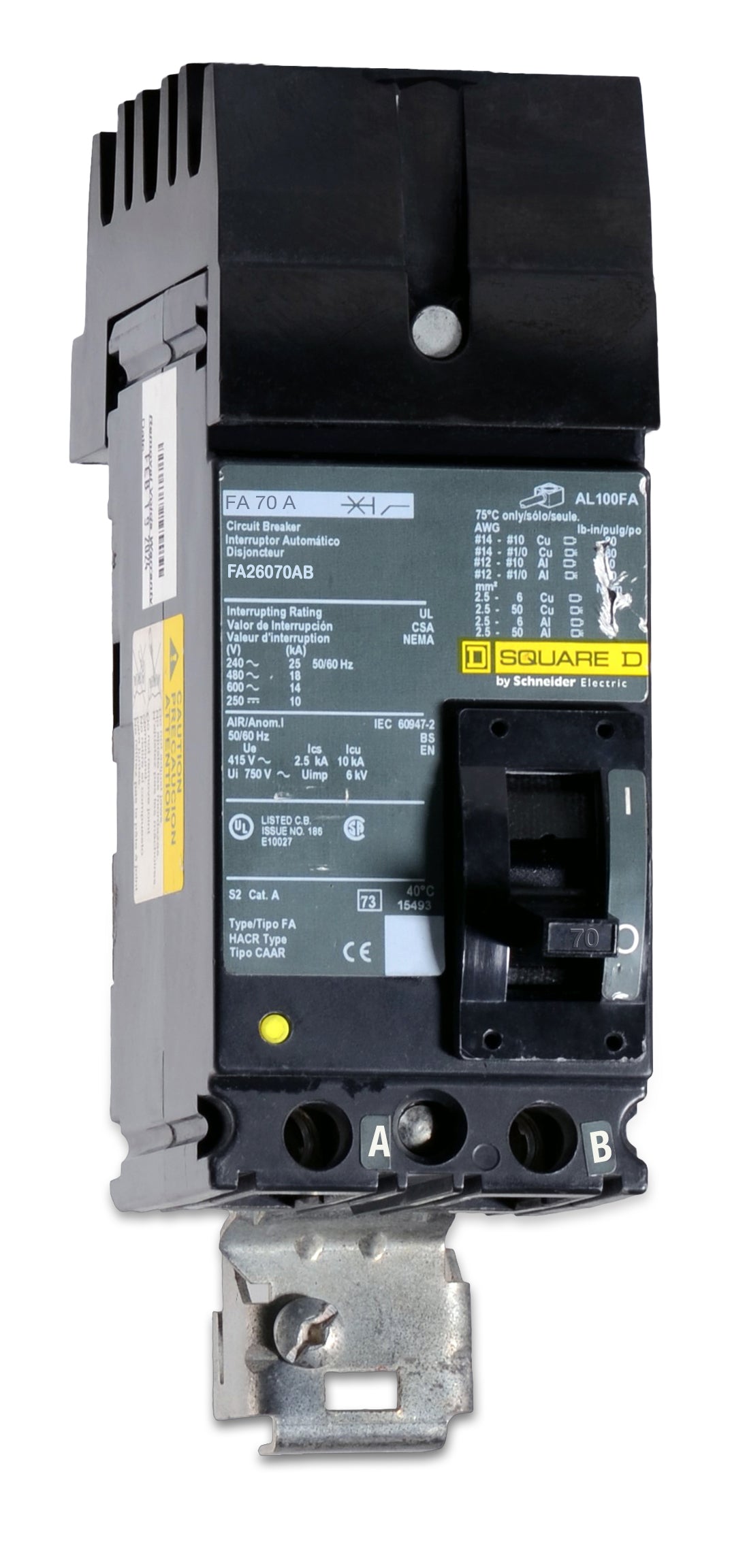

The Square D FA26070AB is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 70 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 25kAIC at 240V, 18kAIC at 480V, 14kAIC at 600V. The FA26070AB has an I-Line mounting type and includes long time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | FA |
| Amperage | 70 |
| Voltage | 600VAC, 250VDC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | I-Line |
| Approval | UL, CSA |
| Interrupting Rating | 25kAIC at 240V, 18kAIC at 480V, 14kAIC at 600V |
| Frame Type | F |
| Connection Type | I-Line Style Plug-In |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| Temperature Rating | 40 °C |
| Mpn | FA26070AB |
| Upc | 785901042686 |
| Gtin | 785901042686 |
