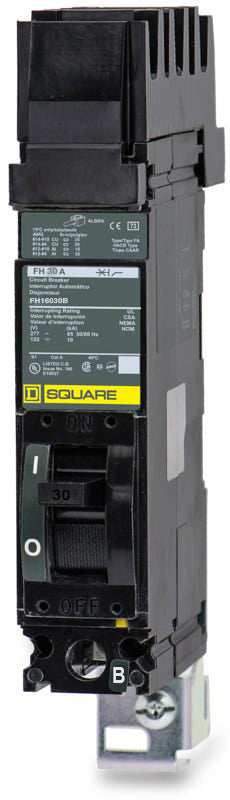

The Square D FH16030B is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 277VAC. It has an interrupting rating of 25kAIC at 240V. The FH16030B has an I-line mounting type and includes long time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | FH |
| Amperage | 30 |
| Voltage | 277VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | I-Line |
| Approval | UL, CSA |
| Interrupting Rating | 25kAIC at 240V |
| Frame Type | FH |
| Connection Type | I-Line Style Plug-In |
| Protection | Thermal Magnetic |
| Functions | Long-Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| Standards | RoHS, REACh |
| Temperature Rating | 40 °C |
| Configuration | B Phase |
| Mpn | FH16030B |
| Gtin | 785901563129 |
