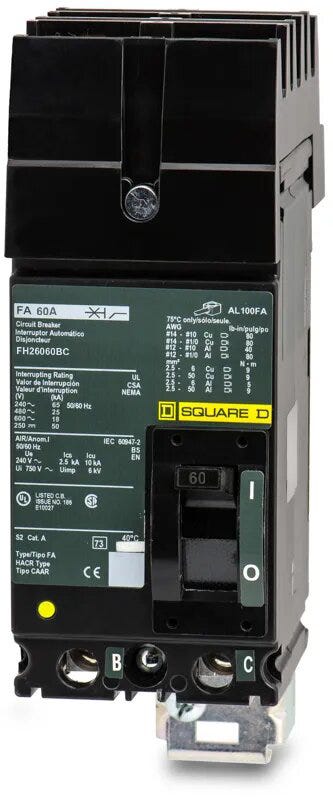

The Square D FH26060BC is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 60 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 25kAIC@480V. The FH26060BC has a I-Line style plug-in connection type and includes long time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | FH |
| Amperage | 60 |
| Voltage | 600VAC, 250VDC |
| Poles | 2 |
| Phase | 1 |
| Approval | UL, CSA, NOM, IEC, CCC, CE |
| Interrupting Rating | 25kAIC@480V |
| Frame Type | FH |
| Connection Type | I-Line Style Plug-In |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Line and Load Lug |
| Wire Gauge | 14 to 1/0 AWG AL/CU |
| Temperature Rating | 40°C |
| Mpn | FH26060BC |
| Gtin | 785901343301 |
