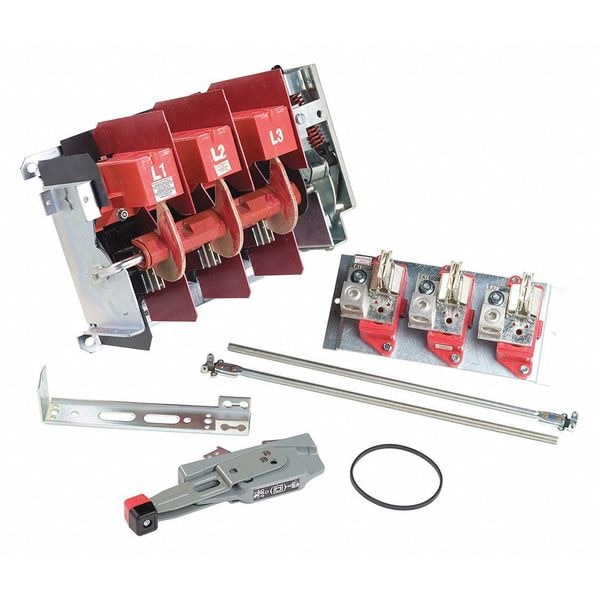

Interruptor de desconexión de fusible, 200 A, 600 V, NEMA 4.
| Item | Disconnect Switch |
|---|---|
| Protection Method | Fusible |
| Amps | 200 |
| Voltage | 600 V |
| NEMA Enclosure Type | 4 |
| Fuse Type | J, R || H || K |
| Product Or Component Type | Disconnect Switch |
| Product Certifications | CSA || UL Recognized |
| Provided Equipment | 6 in handle included NEMA 1/3/3R/4 enclosures sheet steel |
| Disconnector Device Type | disconnect switch |
| Line Rated Current | 200 A |
| Product Mounting | flange rod variable depth |
| Associated Fuse Rating | 200 A 250/600 V |
| Maximum Horse Power Rating | 40 hp 200 V AC || 60 hp 230 V AC || 125 hp 460 V AC || 150 hp 575 V AC || 40 hp 250 V DC |
| Horsepower Rating | 40 hp 200 V AC; 60 hp 230 V AC; 125 hp 460 V AC; 150 hp 575 V AC; 40 hp 250 V DC |
| Certifications | CSA; UL Recognized |
| Range of Product | 9422T |
| Package Quantity | 1 |
