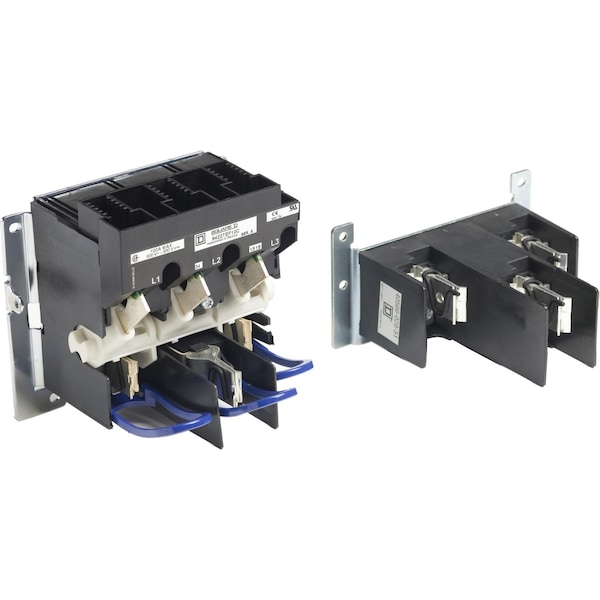

Interruptor de desconexión montado en brida con fusible, 100 A, 600V CA.
| Item | Flange Mount Disconnect Switch |
|---|---|
| Protection Method | Fusible |
| Amps | 100 |
| Voltage | 600 V AC |
| Fuse Type | H, K, J || R |
| Associated Fuse Rating | 100 A 250/600 V |
| Disconnector Device Type | disconnect switch |
| Product Mounting | flange cable variable depth |
| Product Certifications | CSA || UL Recognized |
| Maximum Horse Power Rating | 25 hp 200 V AC || 30 hp 230 V AC || 60 hp 460 V AC || 75 hp 575 V AC || 20 hp 250 V DC |
| Product Or Component Type | Disconnect Switch |
| Line Rated Current | 100 A |
| Certifications | CSA; UL Recognized |
| Horsepower Rating | 25 hp 200 V AC; 30 hp 230 V AC; 60 hp 460 V AC; 75 hp 575 V AC; 20 hp 250 V DC |
| Provided Equipment | ordered separately |
| Range of Product | 9422T |
| Package Quantity | 1 |
