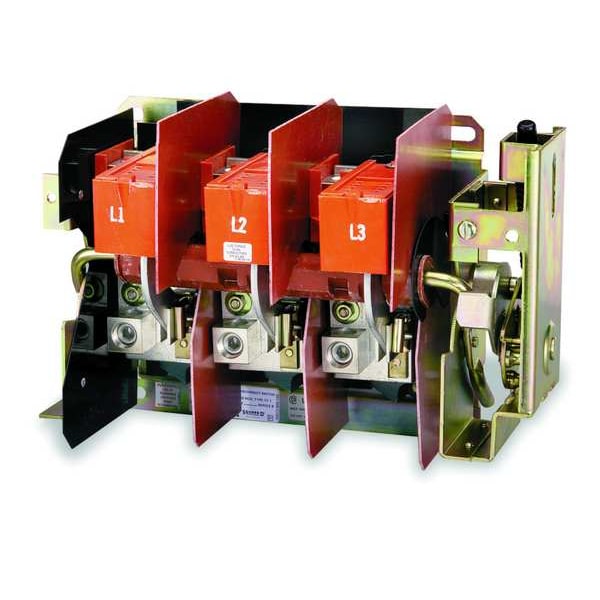

Interruptor de desconexión montado en brida con fusible, 600V CA / 250V CC.
| Item | Flange Mount Disconnect Switch |
|---|---|
| Protection Method | Fusible |
| Amps | 100 |
| Duty | Standard |
| Voltage | 600V AC/250V DC |
| Phase | 3 |
| Number of Wires | 3 |
| Number of Poles | 2 |
| Contact Form | 3PST |
| Amps AC | 100 A |
| Fuse Clip | Class H, K, J, R Fuses |
| Max. HP @ 575V | 75 HP |
| Includes | MOUNTING HARDWARE |
| Max. HP @ 460V | 60 HP |
| Max. Mounting Depth | 18 in |
| Min. Mounting Depth | 6.63 in |
| Max. HP @ 230V | 30 HP |
| Max. HP @ 208V | 25 HP |
| Fusible / Nonfusible | Fusible |
| Max. HP @ 250VDC | 20 HP |
| Standards | CSA Certified, UL 98 Listed |
| Neutral Assembly Included | No |
| Height | 3-1/4 in |
| Depth | 2-1/2 in |
| Width | 2-1/4 in |
| Fuse Type | H, K, J || R |
| For Fuse Class | Class H, Class J, Class K, Class R |
| Minimum Mounting Depth | 6.63 in |
| Mounting Style | Flange |
| Horsepower @ 600V AC | 75 HP |
| Maximum Mounting Depth | 18 in |
| Horsepower @ 240V AC | 30 HP |
| Resistance Properties | Fire-Resistant |
| Current Rating | 100 A |
| Horsepower @ 480V AC | 60 HP |
| Housing Material | Non-Metallic |
| Product Mounting | flange rod variable depth |
| Associated Fuse Rating | 100 A 250/600 V |
| Line Rated Current | 100 A |
| Product Or Component Type | Disconnect Switch |
| Maximum Horse Power Rating | 25 hp 200 V AC || 30 hp 230 V AC || 60 hp 460 V AC || 75 hp 575 V AC || 20 hp 250 V DC |
| Product Certifications | UL Recognized || CSA |
| Disconnector Device Type | disconnect switch |
| Package Quantity | 1 |
