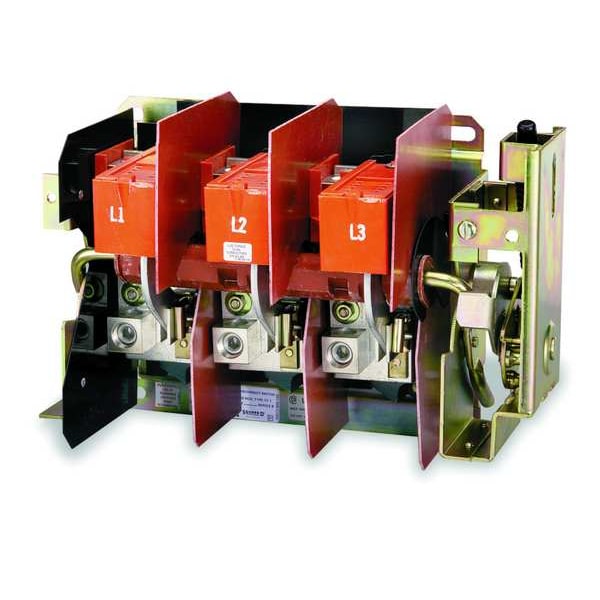

Interruptor de desconexión de montaje de brida con fusible, 600V CA/250V CC
| Item | Flange Mount Disconnect Switch |
|---|---|
| Protection Method | Fusible |
| Amps | 200 |
| Duty | Heavy Duty |
| Voltage | 600V AC/250V DC |
| Phase | 3 |
| Number of Wires | 3 |
| Number of Poles | 2 |
| Contact Form | 3PST |
| Amps AC | 200 A |
| Fuse Clip | Class H, K, J, R Fuses |
| Min. Mounting Depth | 9.12 in |
| Includes | Operating Mechanism and Mounting Hardware |
| Max. Mounting Depth | 19-1/4 in |
| Max. HP @ 230V | 60 HP |
| Fusible / Nonfusible | Fusible |
| Max. HP @ 208V | 40 HP |
| Max. HP @ 575V | 150 HP |
| Max. HP @ 460V | 125 HP |
| Max. HP @ 250VDC | 40 HP |
| Depth | 4-3/4 in |
| Height | 6-1/2 in |
| Fuse Type | J || R, H || K |
| Standards | CSA Certified, UL 98 Listed |
| Width | 4 in |
| For Fuse Class | Class H, Class J, Class K, Class R |
| Maximum Mounting Depth | 19-1/4 in |
| Minimum Mounting Depth | 9.12 in |
| Current Rating | 200 A |
| Mounting Style | Flange |
| Horsepower @ 240V AC | 60 HP |
| Housing Material | Plastic |
| Horsepower @ 600V AC | 150 HP |
| Horsepower @ 480V AC | 125 HP |
| Disconnector Device Type | disconnect switch |
| Line Rated Current | 200 A |
| Product Or Component Type | Disconnect Switch |
| Product Mounting | flange rod variable depth |
| Associated Fuse Rating | 200 A 250/600 V |
| Product Certifications | CSA || UL Recognized |
| Maximum Horse Power Rating | 40 hp 200 V AC || 60 hp 230 V AC || 125 hp 460 V AC || 150 hp 575 V AC || 40 hp 250 V DC |
| Horsepower Rating | 40 hp 200 V AC; 60 hp 230 V AC; 125 hp 460 V AC; 150 hp 575 V AC; 40 hp 250 V DC |
| Certifications | CSA; UL Recognized |
| Package Quantity | 1 |
