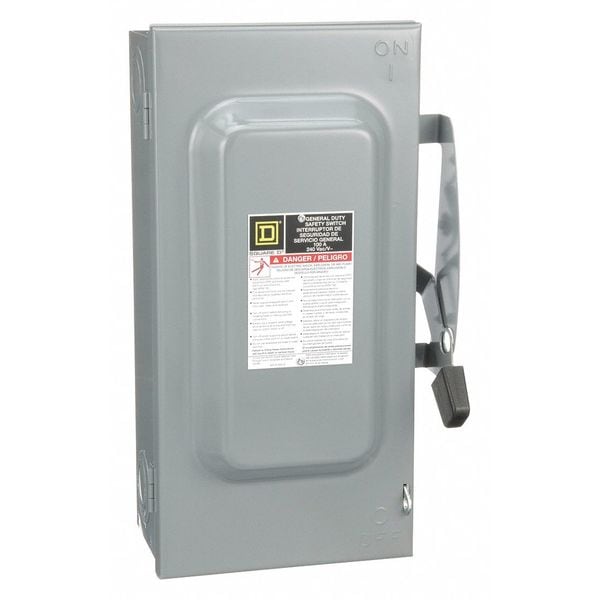

Interruptor de seguridad de fusibles, deber general, 240V CA, 2PST, 100 A, NEMA 1
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 1 |
| HP | 15 HP @ 240 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 3 |
| Number of Poles | 2 |

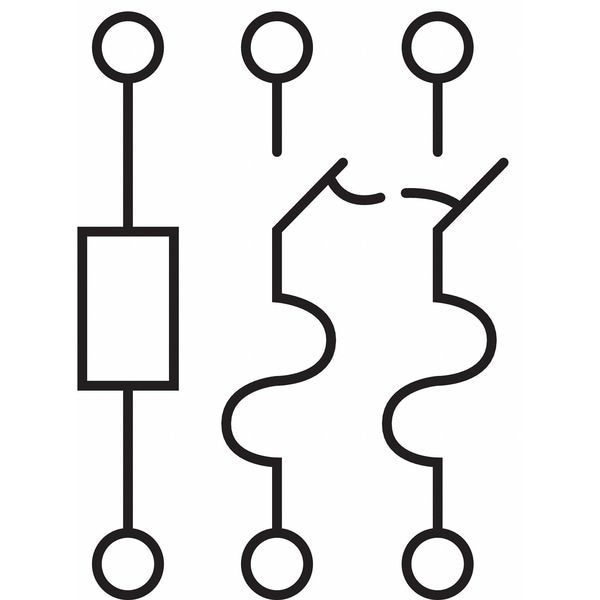

| Contact Form | 2PST |
| Amps AC | 100 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Height | 17-1/2 in |
| Fuse Kit (Class R) | Mfr. No. RFK10 |
| Width | 10-1/2 in |
| Standards | UL listed |
| Depth | 6-1/2 in |
| For Use With | Class H, K, R, T Fuse |
| Fusible / Nonfusible | Fusible |
| Fuse Type | Class H, K, R |
| Mounting | Surface |
| Enclosure Type | Enclosed |
| Neutral Assembly Included | Yes |
| Features | Mercury Free, PVC Free |
| Weight | 7 kg |
| Gauge/Conductor | 12 to 1 AWG (Aluminum), 14 to 1 AWG (Copper) |
| Electrical Connection | Lugs |
| Compatible with Manufacturer Model Number | RFK10 |
| NEMA Enclosure Rating | 1 |
| For Fuse Class | Class H, Class K, Class R |
| Mounting Style | Surface Mount |
| Current Rating | 100 A |
| Housing Material | Steel |
| Horsepower @ 240V AC | 5 HP |
| Environment | Indoor |
| Horsepower @ 600V AC | 60 HP |
| Includes Neutral Assembly | Yes |
| Compatible with Manufacturer Part Number | RFK10 |
| Compatible Manufacturer Part Number | RFK10 |
| Compatible with Manufacturer Model Number [NEW] | RFK10 |
| Compatible Manufacturer Model Number | RFK10 |
| For Use with Mfr. Model Number | RFK10 |
| Wiring Configuration | 3-wire |
| Tightening Torque | 35 lbf.in (3.95 N.m) 0.00 to 0.01 in² (2.08 to 5.26 mm²) (AWG 14 to AWG 10); 35 lbf.in (3.95 N.m) (AWG 14 to AWG 10); 40 lbf.in (4.52 N.m) 0.01 in² (8.37 mm²) (AWG 8); 45 lbf.in (5.08 N.m) 0.02 to 0.03 in² (12.3 to 21.12 mm²) (AWG 6 to AWG 4); 50 lbf.in (5.65 N.m) (AWG 3 to AWG 1) |
| Wire Size | AWG 14 to AWG 1 copper; AWG 12 to AWG 1 aluminium |
| Duty Rating | General duty |
| Voltage Rating | 240 V AC |
| Certifications | UL listed file E2875 |
| Factory Installed Neutral | Neutral |
| Disconnect Type | disconnect switch |
| Enclosure Rating NEMA | NEMA 1 |
| Short Circuit Current Rating | 100 kA maximum depending on fuse H, K or R |
| Device Application | Residential |
| Motor Power HP | 7.5 hp at 240 V AC 60 Hz for 1 phase motors; 15 hp at 240 V AC 60 Hz for 3 phase motors; 15 hp at 240 V AC 60 Hz for 1 phase motors; 30 hp at 240 V AC 60 Hz for 3 phase motors |
| Package Quantity | 1 |
