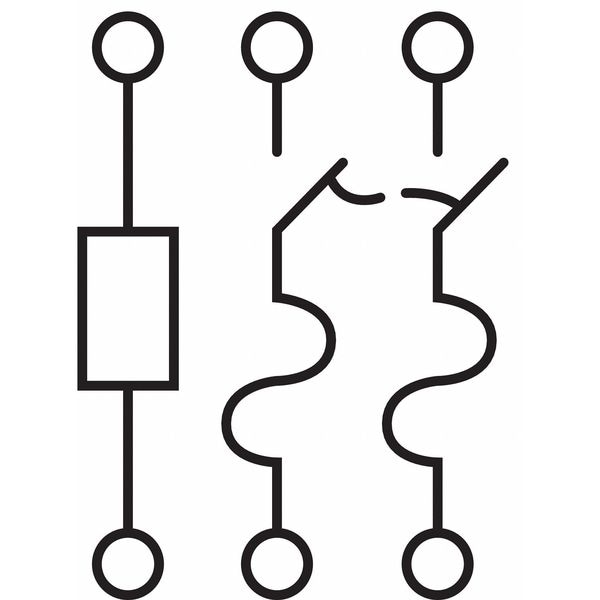

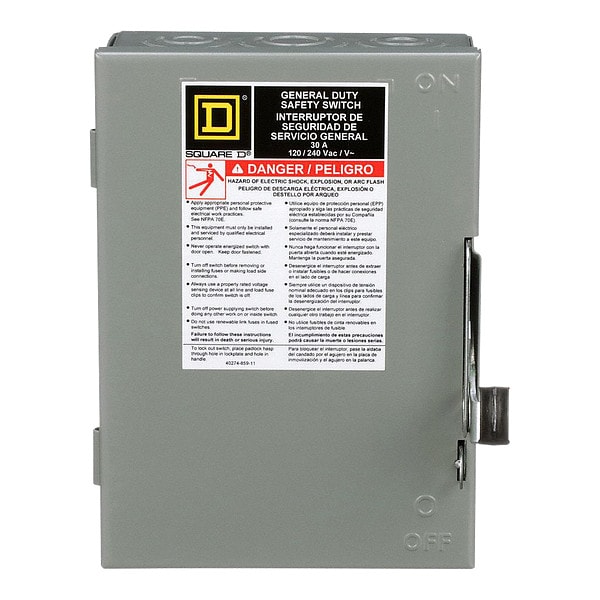

Interruptor de seguridad con fusible, uso general, 240V AC, 2 polos, 30 A, NEMA 1.
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 1 |
| HP | 3 HP @ 240 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 3 |
| Number of Poles | 2 |
| Contact Form | 2PST |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Standards | UL listed |
| Height | 9.2 in |
| Fusible / Nonfusible | Fusible |
| Width | 7.2 in |
| Depth | 3.6 in |
| For Use With | Plug Style Fuse |
| Fuse Type | Plug |
| Gauge/Conductor | 12 to 6 AWG (Aluminum), 14 to 6 AWG (Copper) |
| Weight | 7.26 kg |
| Features | Mercury Free, PVC Free |
| Mounting | Surface |
| Electrical Connection | Lugs |
| Enclosure Type | Enclosed |
| Neutral Assembly Included | Yes |
| Environment | Indoor |
| Includes Neutral Assembly | Yes |
| Mounting Style | Surface Mount |
| NEMA Enclosure Rating | 1 |
| For Fuse Class | Plug |
| Current Rating | 30 A |
| Housing Material | Steel |
| Horsepower @ 240V AC | 7.5 HP |
| Voltage Rating | 120 V AC |
| Enclosure Rating NEMA | NEMA 1 |
| Wiring Configuration | 3-wire |
| Certifications | UL listed file E2875 |
| Short Circuit Current Rating | 10 kA plug |
| Tightening Torque | 30 lbf.in (3.39 N.m) 0.00 to 0.02 in² (2.08 to 13.3 mm²) (AWG 14 to AWG 6) |
| Factory Installed Neutral | Neutral/earth strip 2 x 16 mm² 5 x 6 mm² |
| Disconnect Type | disconnect switch |
| Duty Rating | General duty |
| Wire Size | AWG 14 to AWG 6 copper; AWG 12 to AWG 6 aluminium |
| Motor Power HP | 0.5 hp at 120 V AC 60 Hz for 1 phase motors; 2 hp at 120 V AC 60 Hz for 1 phase motors; 1.5 hp at 240 V AC 60 Hz for 1 phase motors; 3 hp at 240 V AC 60 Hz for 1 phase motors |
| Device Application | Residential |
| Package Quantity | 1 |
