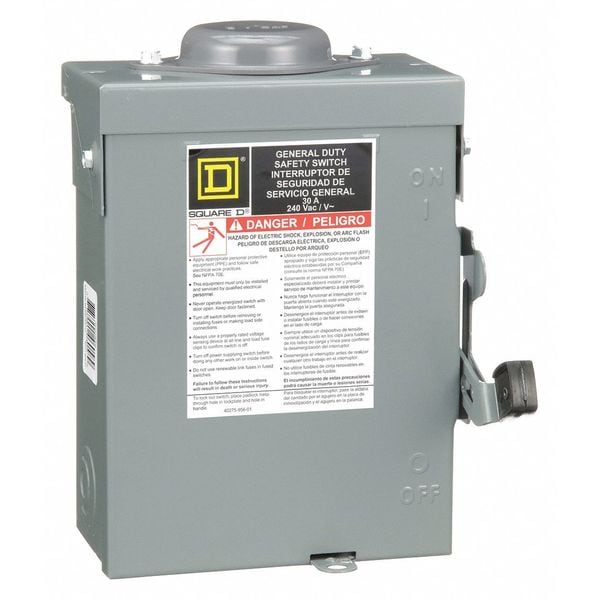

Interruptor de seguridad con fusibles, servicio general, 240V CA, 2 polos, 30 A, NEMA 3R.
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 1 |
| HP | 3 HP @ 240 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 3 |
| Number of Poles | 2 |
| Contact Form | 2PST |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvannealed Steel |
| For Use With | Class H, K, R, T Fuse |
| Fusible / Nonfusible | Fusible |
| Depth | 3.8 in |
| Standards | UL listed |
| Height | 9.6 in |
| Fuse Kit (Class R) | Mfr. No. DRK30 |
| Width | 7.7 in |
| Fuse Type | Class H, K, R |
| Gauge/Conductor | 12 to 6 AWG (Aluminum), 14 to 6 AWG (Copper) |
| Weight | 7.7 kg |
| Electrical Connection | Lugs |
| Enclosure Type | Enclosed |
| Mounting | Surface |
| Neutral Assembly Included | Yes |
| Features | Mercury Free, PVC Free |
| For Fuse Class | Class H, Class K, Class R |
| Environment | Indoor, Outdoor |
| Housing Material | Steel |
| Current Rating | 30 A |
| Horsepower @ 240V AC | 3 HP |
| Includes Neutral Assembly | Yes |
| Compatible with Manufacturer Model Number | DRK30 |
| NEMA Enclosure Rating | 3R |
| Mounting Style | Surface Mount |
| Compatible Manufacturer Part Number | DRK30 |
| Compatible with Manufacturer Part Number | DRK30 |
| Compatible with Manufacturer Model Number [NEW] | DRK30 |
| Compatible Manufacturer Model Number | DRK30 |
| For Use with Mfr. Model Number | DRK30 |
| Package Quantity | 1 |
