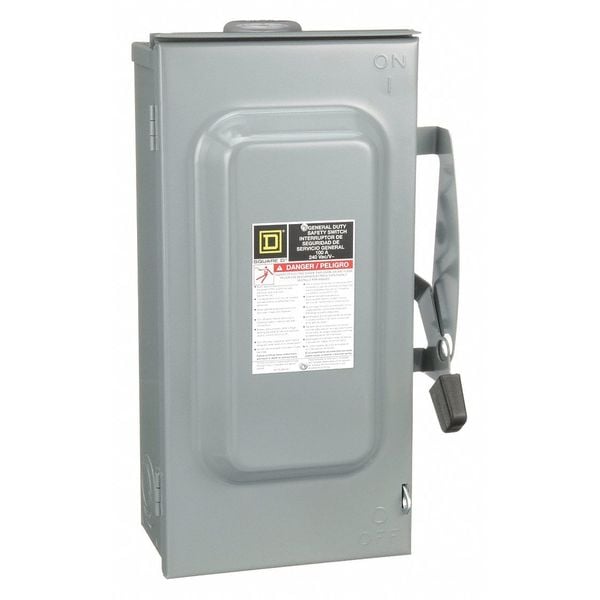

Interruptor de seguridad con fusible, de uso general, 240V AC, 3PST, 100 A, NEMA 3R
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 3 |
| HP | 30 HP @ 240 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 100 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvannealed Steel |
| Width | 10-1/2 in |
| Fusible / Nonfusible | Fusible |
| Standards | UL listed |
| Height | 17-1/2 in |
| Depth | 6-1/2 in |
| For Use With | Class H, K, R, T Fuse |
| Fuse Kit (Class R) | Mfr. No. RFK10 |
| Fuse Type | Class H, K, R |
| Electrical Connection | Lugs |
| Mounting | Surface |
| Gauge/Conductor | 12 to 1 AWG (Aluminum), 14 to 1 AWG (Copper) |
| Neutral Assembly Included | Yes |
| Enclosure Type | Enclosed |
| Features | Mercury Free, PVC Free |
| Weight | 7.71 kg |
| Housing Material | Steel |
| Horsepower @ 240V AC | 5 HP |
| NEMA Enclosure Rating | 3R |
| Includes Neutral Assembly | Yes |
| For Fuse Class | Class H, Class K, Class R |
| Current Rating | 100 A |
| Environment | Indoor, Outdoor |
| Mounting Style | Surface Mount |
| Package Quantity | 1 |
