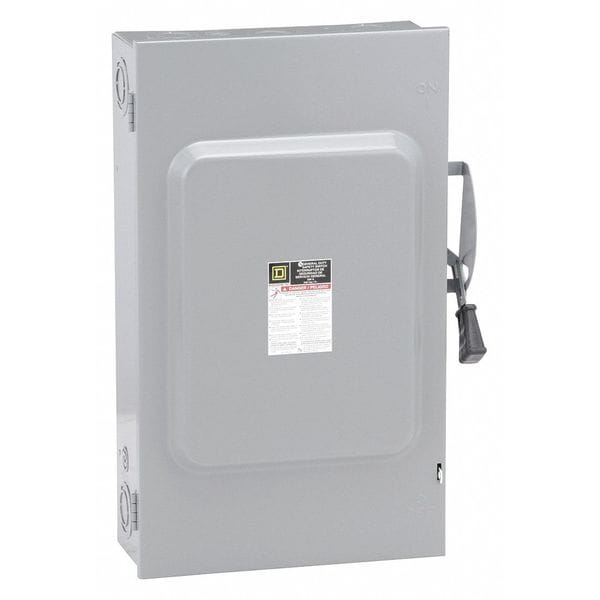

Interruptor de seguridad con fusible, servicio general, 240V AC, 3PST, 200 A, NEMA 1.
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 3 |
| HP | 60 HP @ 240 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 200 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Width | 19 in |
| Fusible / Nonfusible | Fusible |
| Standards | UL listed |
| For Use With | Class H, K, R, T Fuse |
| Height | 29 in |
| Depth | 8.3 in |
| Fuse Kit (Class R) | Mfr. No. HRK1020 |
| Fuse Type | Class H, K, R |
| Enclosure Type | Enclosed |
| Neutral Assembly Included | Yes |
| Weight | 25.17 kg |
| Mounting | Surface |
| Features | Mercury Free, PVC Free, Toxic Heavy Metal Free |
| Gauge/Conductor | 6 AWG to 250 kcmil |
| Electrical Connection | Lugs |
| Includes Neutral Assembly | Yes |
| Mounting Style | Surface Mount |
| Housing Material | Steel |
| NEMA Enclosure Rating | 1 |
| Current Rating | 200 A |
| For Fuse Class | Class H, Class K, Class R |
| Horsepower @ 240V AC | 60 HP |
| Environment | Indoor |
| Package Quantity | 1 |
