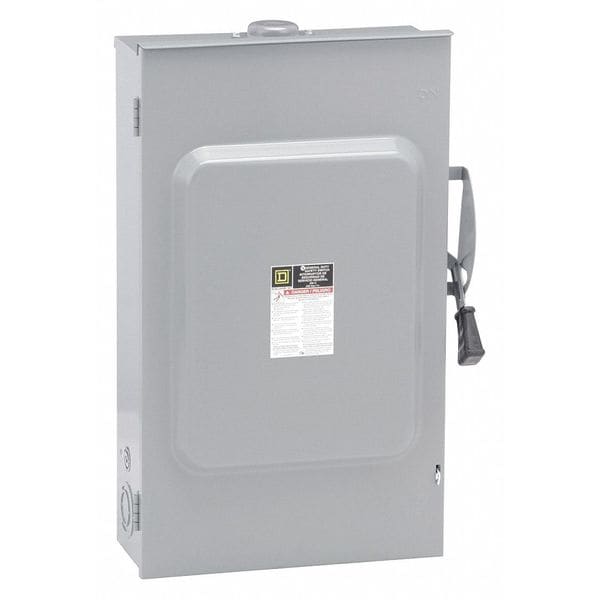

Interruptor de seguridad fusible, deber general, 240V CA, 3PST, 200 A, NEMA 3R
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 3 |
| HP | 60 HP @ 240 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 200 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvannealed Steel |
| Fusible / Nonfusible | Fusible |
| Standards | UL listed |
| Width | 19 in |
| For Use With | Class H, K, R, T Fuse |
| Height | 29.2 in |
| Depth | 8.2 in |
| Fuse Type | Class H, K, R |
| Fuse Kit (Class R) | Mfr. No. HRK1020 |
| Mounting | Surface |
| Neutral Assembly Included | Yes |
| Weight | 25.63 kg |
| Gauge/Conductor | 6 AWG to 250 kcmil |
| Features | Mercury Free, PVC Free, Toxic Heavy Metal Free |
| Enclosure Type | Enclosed |
| Electrical Connection | Lugs |
| Includes Neutral Assembly | Yes |
| Mounting Style | Surface Mount |
| NEMA Enclosure Rating | 3R |
| Current Rating | 200 A |
| Housing Material | Steel |
| For Fuse Class | Class H, Class K, Class R |
| Horsepower @ 240V AC | 60 HP |
| Environment | Indoor, Outdoor |
| Voltage Rating | 240 V AC |
| Enclosure Rating NEMA | NEMA 3R |
| Factory Installed Neutral | Neutral |
| Device Application | Residential |
| Motor Power HP | 15 hp at 240 V AC 60 Hz for 1 phase motors; 25 hp at 240 V AC 60 Hz for 3 phase motors; 60 hp at 240 V AC 60 Hz for 3 phase motors |
| Short Circuit Current Rating | 100 kA maximum depending on fuse H, K or R |
| Disconnect Type | disconnect switch |
| Wire Size | AWG 6 to 250 kcmil aluminium/copper |
| Tightening Torque | 275 lbf.in (31.07 N.m) (AWG 6 to 250 kcmil) |
| Wiring Configuration | 4-wire (3PH + G) |
| Duty Rating | General duty |
| Certifications | UL listed file E2875 |
| Package Quantity | 1 |
