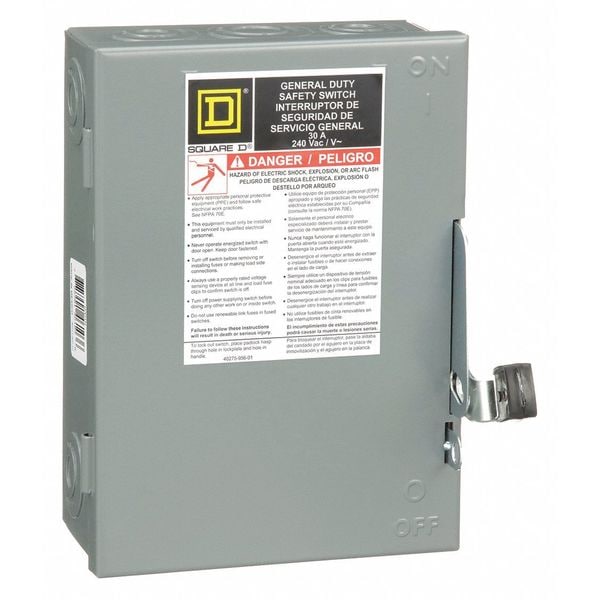

Interruptor de Seguridad con Fusible, Uso General, 240V AC, 3PST, 30 A, NEMA 1
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 3 |
| HP | 7-1/2 HP @ 240 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Height | 9.2 in |
| Width | 7.2 in |
| For Use With | Class H, K, R, T Fuse |
| Depth | 3.6 in |
| Fusible / Nonfusible | Fusible |
| Standards | UL listed |
| Fuse Type | Class H, K, R |
| Fuse Kit (Class R) | Mfr. No. DRK30 |
| Weight | 9 kg |
| Enclosure Type | Enclosed |
| Neutral Assembly Included | Yes |
| Gauge/Conductor | 12 to 6 AWG (Aluminum), 14 to 6 AWG (Copper) |
| Electrical Connection | Lugs |
| Mounting | Surface |
| Features | Mercury Free, PVC Free |
| NEMA Enclosure Rating | 1 |
| Environment | Indoor |
| Current Rating | 30 A |
| Includes Neutral Assembly | Yes |
| Horsepower @ 240V AC | 3 HP |
| Housing Material | Steel |
| Mounting Style | Surface Mount |
| For Fuse Class | Class H, Class K, Class R |
| Package Quantity | 1 |
