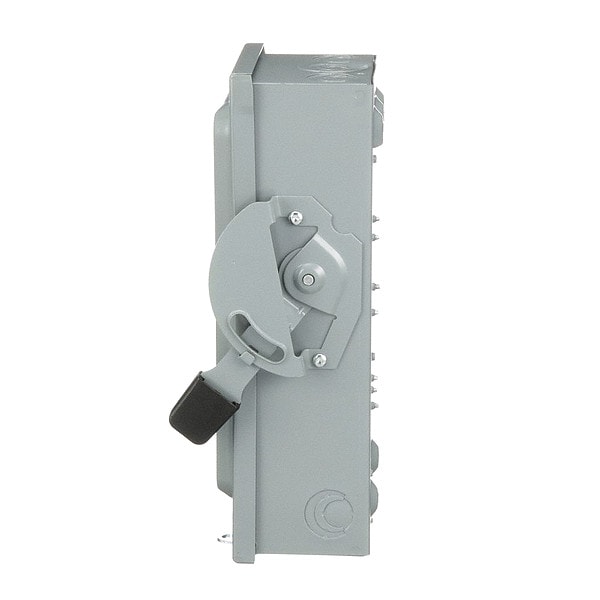

Interruptor de Seguridad con Fusible, Uso General, 240V CA, 3PST, 60 A, NEMA 1.
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 3 |
| HP | 15 HP @ 240 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 60 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Standards | UL listed |
| Width | 7-1/2 in |
| Height | 14.6 in |
| Depth | 4.9 in |
| For Use With | Class H, K, R, T Fuse |
| Fusible / Nonfusible | Fusible |
| Fuse Kit (Class R) | Mfr. No. RFK03H |
| Fuse Type | Class H, K, R |
| Gauge/Conductor | 12 to 3 AWG (Aluminum), 14 to 3 AWG (Copper) |
| Neutral Assembly Included | Yes |
| Features | Mercury Free, PVC Free |
| Mounting | Surface |
| Weight | 4 kg |
| Electrical Connection | Lugs |
| Enclosure Type | Enclosed |
| Includes Neutral Assembly | Yes |
| Current Rating | 60 A |
| Mounting Style | Surface Mount |
| NEMA Enclosure Rating | 1 |
| Environment | Indoor |
| For Fuse Class | Class H, Class K, Class R |
| Housing Material | Steel |
| Horsepower @ 240V AC | 15 HP |
| Package Quantity | 1 |
