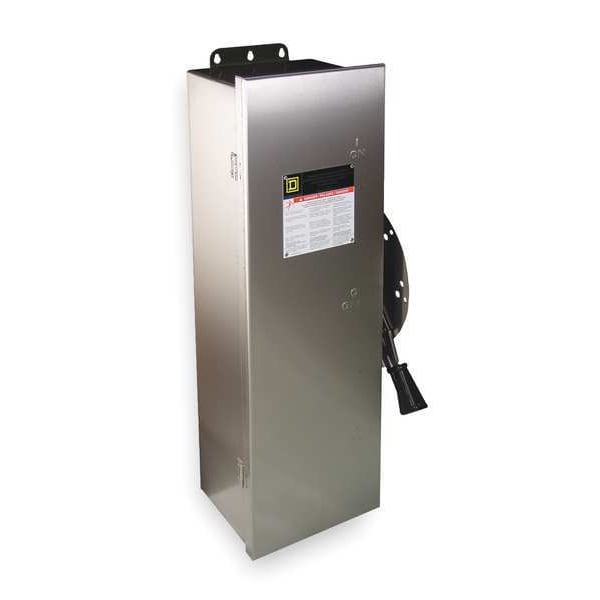

Interruptor de seguridad fusible, resistente, 240V AC/250V DC, 2PST, 400 A, NEMA 4, 4X, 5.
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy |
| Voltage | 240V AC/250V DC |
| Phase | 1 |
| HP | 125 HP @ 240 V AC, 50 HP @ 240 V AC, 50 HP @ 250 V DC |
| NEMA Enclosure Type | 4X, 4, 5 |
| IP Rating | Not Rated |
| Number of Wires | 3 |
| Number of Poles | 2 |
| Contact Form | 2PST |
| Amps AC | 400 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Stainless Steel |
| Fuse Kit (Class R) | Mfr. No. HRK4060 |
| Fusible / Nonfusible | Fusible |
| Height | 32 in |
| Depth | 11 in |
| Width | 22 in |
| For Use With | Class R Fuse |
| Standards | UL listed |
| Fuse Type | Class H, K, R or J |
| Neutral Assembly Included | Yes |
| Mounting | Surface |
| Gauge/Conductor | 1/0 AWG to 750 kcmil |
| Weight | 79.4 kg |
| Features | Mercury Free, PVC Free |
| Electrical Connection | Lugs |
| For Fuse Class | Class H, Class J, Class K, Class R |
| Mounting Style | Surface Mount |
| Horsepower @ 480V AC | 75 HP |
| Compatible with Manufacturer Model Number | HRK4060 |
| Environment | Indoor, Outdoor |
| Horsepower @ 600V AC | 75 HP |
| Includes Neutral Assembly | Yes |
| Horsepower @ 240V AC | 50 HP |
| Current Rating | 400 A |
| Housing Material | Stainless Steel |
| NEMA Enclosure Rating | 4, 4X, 5 |
| Compatible with Manufacturer Part Number | HRK4060 |
| Compatible Manufacturer Part Number | HRK4060 |
| Compatible with Manufacturer Model Number [NEW] | HRK4060 |
| Compatible Manufacturer Model Number | HRK4060 |
| For Use with Mfr. Model Number | HRK4060 |
| Package Quantity | 1 |
