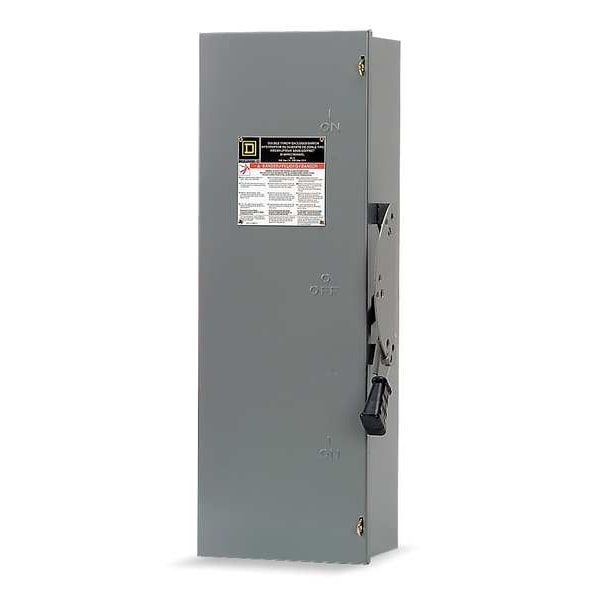

Interruptor de seguridad con fusible, resistente, 240V CA/CC, 2PDT, 100 A, NEMA 1.
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy |
| Voltage | 240V AC/DC |
| Phase | 1 |
| HP | 15 HP @ 240 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 2 |
| Number of Poles | 2 |
| Contact Form | 2PDT |
| Amps AC | 100 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Width | 11.1 in |
| Standards | UL listed |
| For Use With | Class H, J, R, T Fuse |
| Depth | 6.8 in |
| Height | 38 in |
| Fusible / Nonfusible | Fusible |
| Fuse Kit (Class R) | Mfr. No. RFK10 |
| Fuse Type | Class H, K, R or J |
| Gauge/Conductor | 12 to 1/0 AWG (Aluminum), 14 to 1/0 AWG (Copper) |
| Mounting | Surface |
| Weight | 19.5 kg |
| Features | Mercury Free, Toxic Heavy Metal Free |
| Neutral Assembly Included | No |
| Current Rating | 100 A |
| For Fuse Class | Class H, Class J, Class K, Class R |
| Housing Material | Steel |
| Mounting Style | Surface Mount |
| Horsepower @ 240V AC | 15 HP |
| Compatible with Manufacturer Model Number | RFK10 |
| Environment | Indoor |
| NEMA Enclosure Rating | 1 |
| Compatible Manufacturer Part Number | RFK10 |
| Compatible with Manufacturer Part Number | RFK10 |
| Compatible with Manufacturer Model Number [NEW] | RFK10 |
| Compatible Manufacturer Model Number | RFK10 |
| For Use with Mfr. Model Number | RFK10 |
| Disconnect Type | Fusible disconnect |
| Enclosure Rating | NEMA 1 |
| Factory Installed Neutral | None |
| Tightening Torque | 35 lbf.in (3.95 N.m) 0.00 to 0.01 in² (2.06 to 5.26 mm²) (AWG 14 to AWG 1/0); 40 lbf.in (4.52 N.m) 0.01 in² (8.37 mm²) (AWG 8); 45 lbf.in (5.08 N.m) 0.02 to 0.08 in² (13.30 to 53.48 mm²) (AWG 8); 50 lbf.in (5.65 N.m) 0.04 to 0.08 in² (26.67 to 53.48 mm²) (AWG 6 to AWG 4) |
| Voltage Rating | 240 V AC, 250 V DC |
| Wire Size | AWG 12 to AWG 1/0 aluminium; AWG 14 to AWG 1/0 copper |
| Short-Circuit Current | 10 kA H or K; 200 kA R or J |
| Motor Power HP | 7.5 hp at 240 V AC 50-60 Hz for 1 phase motors; 15 hp at 240 V AC 50-60 Hz for 3 phase motors; 15 hp at 240 V AC 50-60 Hz for 1 phase motors; 30 hp at 240 V AC 50-60 Hz for 3 phase motors; 20 hp at 250 V |
| Duty Rating | Heavy duty |
| Package Quantity | 1 |
