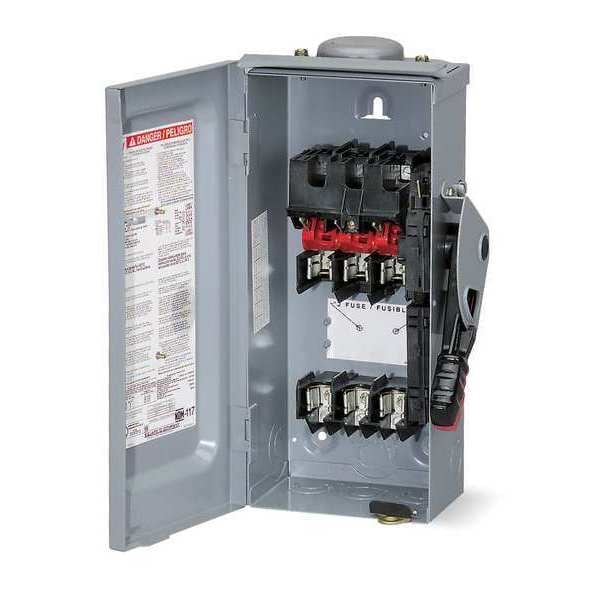

Interruptor de seguridad fusible, resistente, 240V CA/CC, 2PST, 400 A, NEMA 3R
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy |
| Voltage | 240V AC/DC |
| Phase | 1 |
| HP | 50 HP @ 250 V DC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 2 |
| Number of Poles | 2 |
| Contact Form | 2PST |
| Amps AC | 400 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Depth | 11 in |
| Standards | UL listed |
| Width | 22 in |
| Fuse Kit (Class R) | Mfr. No. HRK4060 |
| Fusible / Nonfusible | Fusible |
| Height | 32 in |
| For Use With | Class R Fuse |
| Fuse Type | Class H, K, R or J |
| Weight | 81.6 kg |
| Enclosure Type | Enclosed |
| Neutral Assembly Included | No |
| Mounting | Surface |
| Gauge/Conductor | 1/0 AWG to 750 kcmil |
| Features | Mercury Free, PVC Free |
| Electrical Connection | Lugs |
| For Fuse Class | Class H, Class J, Class K, Class R |
| Environment | Indoor, Outdoor |
| Compatible with Manufacturer Model Number | HRK4060 |
| Resistance Properties | Rainproof |
| Mounting Style | Surface Mount |
| Horsepower @ 240V AC | 15 HP |
| NEMA Enclosure Rating | 3R |
| Housing Material | Steel |
| Current Rating | 400 A |
| Compatible Manufacturer Part Number | HRK4060 |
| Compatible with Manufacturer Part Number | HRK4060 |
| Compatible with Manufacturer Model Number [NEW] | HRK4060 |
| Compatible Manufacturer Model Number | HRK4060 |
| For Use with Mfr. Model Number | HRK4060 |
| Disconnect Type | Fusible disconnect |
| Wiring Configuration | 2-wire |
| Factory Installed Neutral | None |
| Voltage Rating | 250 V DC, 240 V AC |
| Wire Size | AWG 1/0 to 750 kcmil copper or aluminium |
| Device Application | Heavy application |
| Duty Rating | Heavy duty |
| Enclosure Rating | NEMA 3R galvannealed steel |
| Certifications | UL listed file E2875 |
| Short-Circuit Current | 10 kA |
| Tightening Torque | 550 lbf.in (62.14 N.m) (AWG 1/0 to 750 kcmil) |
| Motor Power HP | 50 HP @ 250 V DC |
| Package Quantity | 1 |
