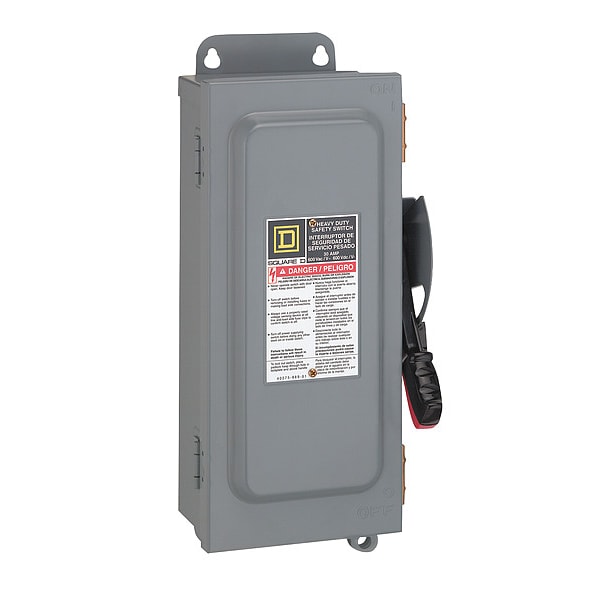

Interruptor de seguridad con fusible, resistente, 240V CA/CC, 2PST, 600 A, NEMA 12, 3R.
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy |
| Voltage | 240V AC/DC |
| Phase | 1 |
| HP | 200 HP @ 240 V AC, 50 HP @ 250 V DC, 75 HP @ 240 V AC |
| NEMA Enclosure Type | 3R, 12 |
| IP Rating | Not Rated |
| Number of Wires | 2 |
| Number of Poles | 2 |
| Contact Form | 2PST |
| Amps AC | 600 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Height | 46.2 in |
| Width | 26.2 in |
| Fusible / Nonfusible | Fusible |
| Fuse Kit (Class R) | Mfr. No. HRK4060 |
| For Use With | Class R Fuse |
| Standards | UL listed |
| Depth | 10.1 in |
| Fuse Type | Class H, K, R or J |
| Enclosure Type | Enclosed |
| Gauge/Conductor | 3/0 AWG to 500 kcmil |
| Neutral Assembly Included | No |
| Features | Mercury Free, PVC Free |
| Weight | 79.4 kg |
| Mounting | Surface |
| Electrical Connection | Lugs |
| Minimum Enclosure Depth | 19.12 in |
| Environment | Indoor, Outdoor |
| Maximum Enclosure Depth | 36 in |
| Maximum Mounting Depth | 31 in |
| Housing Material | Steel |
| Compatible with Manufacturer Model Number | HRK4060 |
| NEMA Enclosure Rating | 12, 3R |
| Mounting Style | Surface Mount |
| Current Rating | 600 A |
| Minimum Mounting Depth | 15 in |
| Horsepower @ 240V AC | 75 HP |
| For Fuse Class | Class H, Class J, Class K, Class R |
| Compatible with Manufacturer Part Number | HRK4060 |
| Compatible Manufacturer Part Number | HRK4060 |
| Compatible with Manufacturer Model Number [NEW] | HRK4060 |
| Compatible Manufacturer Model Number | HRK4060 |
| For Use with Mfr. Model Number | HRK4060 |
| Wire Size | AWG 3/0 to 500 kcmil copper or aluminium |
| Disconnect Type | Fusible disconnect |
| Voltage Rating | 250 V DC, 240 V AC |
| Motor Power HP | 75 hp at 240 V AC 50-60 Hz for 3 phase motors; 200 hp at 240 V AC 50-60 Hz for 3 phase motors; 50 hp at 250 V DC |
| Device Application | Heavy application |
| Wiring Configuration | 2-wire |
| Enclosure Rating | NEMA 3R/12 galvannealed steel |
| Tightening Torque | 375 lbf.in (42.37 N.m) (AWG 3/0 to 500 kcmil) |
| Duty Rating | Heavy duty |
| Short-Circuit Current | 10 kA |
| Certifications | UL listed file E2875 |
| Factory Installed Neutral | None |
| Package Quantity | 1 |
