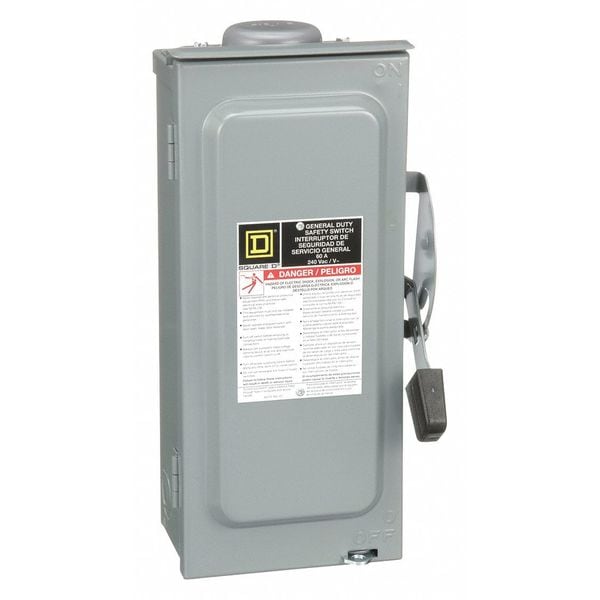

Interruptor de seguridad de un solo tiro con fusible, deber general, 240V de corriente alterna, 2PST, 60 A, NEMA 3R.
| Item | Single Throw Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 1 |
| HP | 10 HP @ 240 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 3 |
| Number of Poles | 2 |
| Contact Form | 2PST |
| Amps AC | 60 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvannealed Steel |
| Depth | 4.9 in |
| Fuse Kit (Class R) | Mfr. No. RFK03L |
| Fusible / Nonfusible | Fusible |
| Height | 14.9 in |
| Width | 7-1/2 in |
| Standards | UL listed |
| For Use With | Class H, K, R, T Fuse |
| Fuse Type | Class H, K, R |
| Weight | 4 kg |
| Electrical Connection | Lugs |
| Enclosure Type | Enclosed |
| Neutral Assembly Included | Yes |
| Gauge/Conductor | 12 to 3 AWG (Aluminum), 14 to 3 AWG (Copper) |
| Features | Mercury Free, PVC Free |
| Mounting | Surface |
| Includes Neutral Assembly | Yes |
| Horsepower @ 240V AC | 15 HP |
| Current Rating | 60 A |
| Mounting Style | Surface Mount |
| Housing Material | Steel |
| Environment | Indoor, Outdoor |
| Compatible with Manufacturer Model Number | RFK03L |
| For Fuse Class | Class H, Class K, Class R |
| NEMA Enclosure Rating | 3R |
| Compatible Manufacturer Part Number | RFK03L |
| Compatible with Manufacturer Part Number | RFK03L |
| Compatible with Manufacturer Model Number [NEW] | RFK03L |
| Compatible Manufacturer Model Number | RFK03L |
| For Use with Mfr. Model Number | RFK03L |
| Disconnect Type | disconnect switch |
| Short Circuit Current Rating | 100 kA maximum depending on fuse H, K or R |
| Duty Rating | General duty |
| Certifications | UL listed file E2875 |
| Voltage Rating | 240 V AC |
| Tightening Torque | 35 lbf.in (3.95 N.m) 0.00 to 0.01 in² (2.08 to 5.26 mm²) (AWG 14 to AWG 10); 35 lbf.in (3.95 N.m) (AWG 14 to AWG 10); 45 lbf.in (5.08 N.m) 0.01 in² (8.37 mm²) (AWG 8); 45 lbf.in (5.08 N.m) 0.02 to 0.03 in² (12.3 to 21.12 mm²) (AWG 6 to AWG 4); 50 lbf.in (5.65 N.m) 0.04 in² (26.67 mm²) (AWG 3) |
| Enclosure Rating NEMA | NEMA 3R |
| Wire Size | AWG 12 to AWG 3 aluminium; AWG 14 to AWG 3 copper |
| Wiring Configuration | 3-wire |
| Factory Installed Neutral | Neutral |
| Motor Power HP | 1.5 hp at 120 V AC 60 Hz for 1 phase motors; 3 hp at 120 V AC 60 Hz for 3 phase motors; 3 hp at 240 V AC 60 Hz for 1 phase motors; 7.5 hp at 240 V AC 60 Hz for 3 phase motors; 10 hp at 240 V AC 60 Hz for 1 phase motors; 15 hp at 240 V AC 60 Hz for 3 phase motors |
| Device Application | Residential |
| Package Quantity | 1 |
