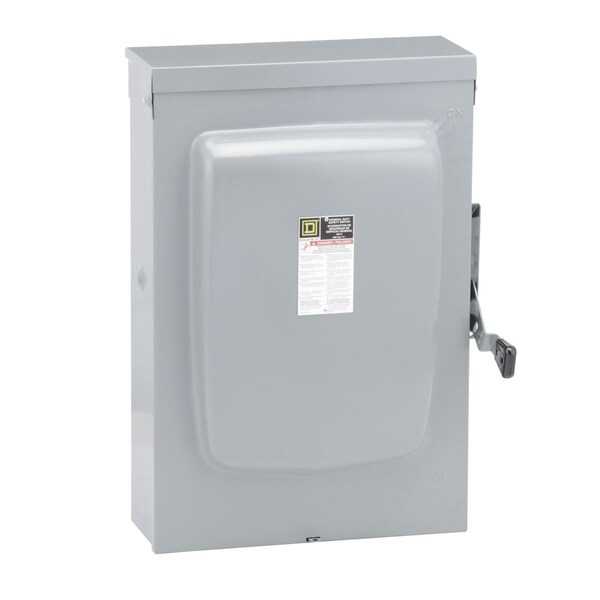

Interruptor de seguridad de un solo tiro con fusible, deber general, 240V CA, 3PST.
| Item | Single Throw Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 3 |
| HP | 75 HP |
| NEMA Enclosure Type | 3R |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 600 A |
| Width | 25.13 in |
| Height | 49.13 in |
| Depth | 8.88 in |
| Fuse Type | Class T |
| Standards | UL Listed |
| Weight | 50 kg |
| Gauge/Conductor | 4 AWG to 500 kcmil |
| Electrical Connection | Lugs |
| Mounting | Surface |
| Features | Mercury Free, PVC Free |
| Number Of Wires | 4 |
| Awg Gauge | AWG 4...500 kcmil aluminium/copper |
| Motor Power Hp | 75 hp at 240 V AC 60 Hz for 3 phase motors |
| Nema Degree of Protection | NEMA 3R |
| Device Composition | neutral (factory installed) |
| Wiring Configuration | 4-wire (3PH + G) |
| [Ue] Rated Operational Voltage | 240 V AC |
| Pvc Free | Yes |
| Short-Circuit Current | 100 kA T |
| Disconnector Device Type | disconnect switch |
| Tightening Torque | 450-450 lbf.in (AWG 4...500 kcmil) |
| Device Application | Residential |
| Series Name | general duty |
| Package Quantity | 1 |
