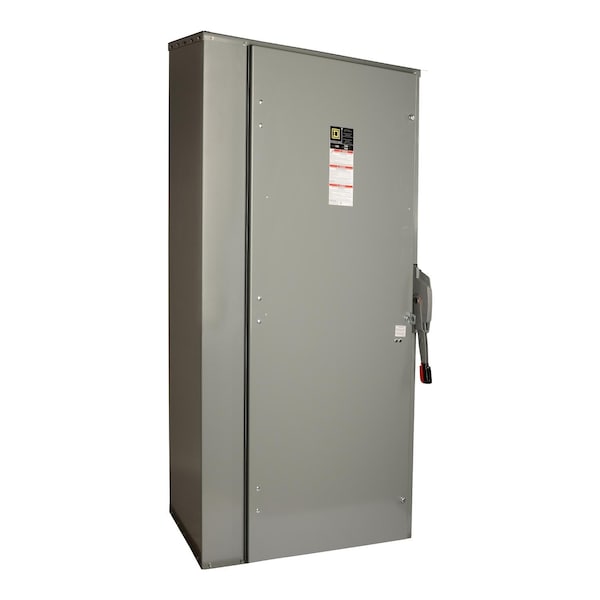

Interruptor de seguridad de fusible de un solo tiro, resistente, 240V CA/250V CC, 2PST
| Item | Single Throw Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy |
| Voltage | 240V AC/250V DC |
| Phase | 1 |
| NEMA Enclosure Type | 3R |
| Number of Poles | 2 |
| Contact Form | 2PST |
| Amps AC | 800 A |
| Fusible / Nonfusible | Fusible |
| Depth | 17-3/4 in |
| Fuse Type | Class L |
| Width | 36.62 in |
| Standards | UL Listed |
| Height | 69.13 in |
| Weight | 163.7 kg |
| Mounting | Surface |
| Features | Mercury Free, PVC Free |
| Electrical Connection | Lugs |
| Gauge/Conductor | 3/0 AWG to 750 kcmil |
| Number Of Wires | 2 |
| Awg Gauge | AWG 3/0...750 kcmil copper or aluminium |
| Device Composition | none |
| Short-Circuit Current | 200 kA maximum for L |
| Tightening Torque | 375-375 lbf.in 85.01-380 mm² (AWG 3/0...750 kcmil) |
| Series Name | heavy duty |
| Pvc Free | Yes |
| Wiring Configuration | 2-wire |
| Disconnector Device Type | fusible disconnect |
| Nema Degree of Protection | NEMA 3R galvannealed steel |
| Device Application | Heavy application |
| [Ue] Rated Operational Voltage | 250 V DC, 240 V AC |
| Package Quantity | 1 |
