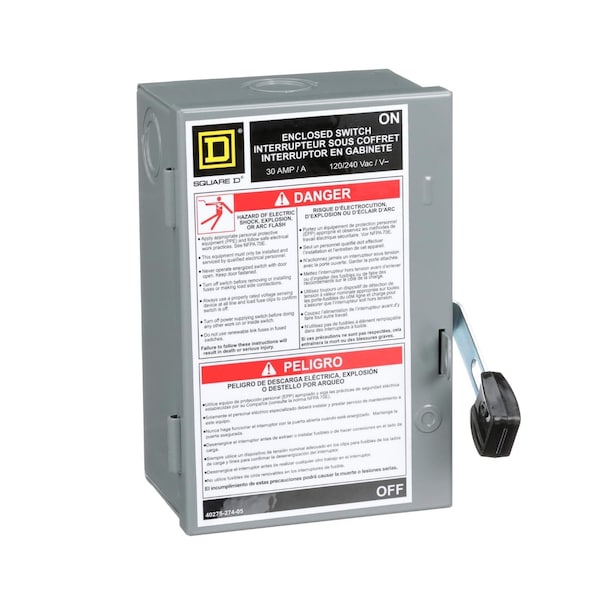

Interruptor de seguridad de un solo tiro con fusible, de servicio ligero, 120V AC, 2PST, 30 A.
| Item | Single Throw Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Light |
| Voltage | 120V AC |
| Phase | 3 |
| NEMA Enclosure Type | 1 |
| Number of Poles | 2 |
| Contact Form | 2PST |
| Amps AC | 30 A |
| Standards | UL Listed |
| Fuse Type | Plug |
| Depth | 4 in |
| Width | 6.13 in |
| Height | 7.63 in |
| Weight | 1.36 kg |
| Mounting | Surface |
| Gauge/Conductor | 12 to 8 AWG (Aluminum), 14 to 8 AWG (Copper) |
| Features | Mercury Free, Toxic Heavy Metal Free |
| Number Of Wires | 3 |
| Nema Degree of Protection | NEMA 1 |
| [Ue] Rated Operational Voltage | 240 V AC |
| Short-Circuit Current | 10 kA |
| Device Composition | neutral (factory installed) |
| Series Name | light duty |
| Awg Gauge | AWG 14...AWG 8 copper, AWG 12...AWG 8 aluminium |
| Device Application | furnace, garages |
| Disconnector Device Type | fusible disconnect |
| Wiring Configuration | 3-wire |
| Tightening Torque | 30-30 lbf.in 2.082-8.367 mm² (AWG 14...AWG 8), 30-30 lbf.in 3.307-8.367 mm² (AWG 12...AWG 8) |
| Package Quantity | 1 |
