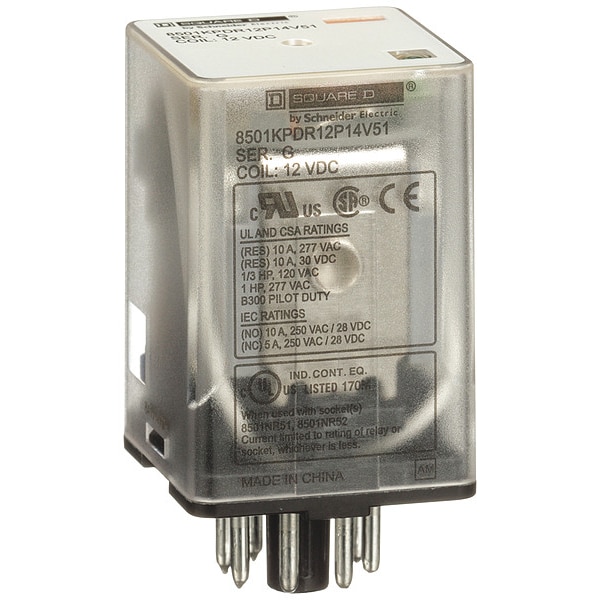

Relé de propósito general, 12V de voltaje de bobina de CD, 8 pines, DPDT.
| Item | General Purpose Relay |
|---|---|
| Coil Volts | 12V DC |
| AC Contact Rating - Relay | 10A @ 300V |
| DC Contact Rating - Relay | 5 A @ 30 V |
| Number of Pins - Relay | 8 |
| Contact Form - Relay | DPDT |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 3 VA |
| Contact Material | Silver Alloy |
| Body Height - Relay | 2.31 in |
| Body Width - Relay | 2-1/2 in |
| Body Depth - Relay | 3.13 in |
| Overall Height - Relay | 2.31 in |
| Features | Indicator Light Relay Energised LED |
| Standards | CE Certified, CSA Certified, UL Listed |
| HP @ 240V | Not Rated |
| HP @ 120V | 5/16 hp |
| Socket Code | A |
| Contact Form | DPDT |
| Status Indicator | Mechanical Flag, LED Indicator |
| Response Time | 20 msec |
| Electrical Connection | 8-Pin Terminal |
| Maximum Operating Temperature | 131 deg F |
| Body Depth | 1.94 in |
| Contact Rating (AC) | 10 A @ 300V |
| Minimum Operating Temperature | -40 deg F |
| Horsepower @ 120V AC | 1/3 hp |
| Pin Shape | Round |
| Flat Pin Width | Not Applicable |
| Series | Square D 8501K Series |
| Overall Depth | 2.7 in |
| Contact Rating (DC) | 5 A @ 30 V |
| Current Rating | 10 A |
| Number of Pins | 8 |
| Push-To-Test Method | No Button |
| Power Consumption | 3 VA |
| Coil Voltage | 12 V DC |
| Sealing | Enclosed |
| Motor Rated | Yes |
| Body Height | 2.67 in |
| Horsepower @ 240V AC | Not Rated |
| Mounting Style | Socket |
| Maximum Switching Voltage | 300 V AC, 30 V DC |
| Base Shape | Octal |
| Compatible with Manufacturer Model Number | 8501NR51, 8501NR52 |
| Body Width | 1.37 in |
| Item - Relay | General Purpose Relay |
| Push To Test | No |
| Operating Temp. Range | -40-131°F |
| Operating Time | 20 ms - pick-up || 20 ms - drop-out |
| Switching Voltage | 300 V AC, 30 V DC |
| Package Quantity | 1 |
