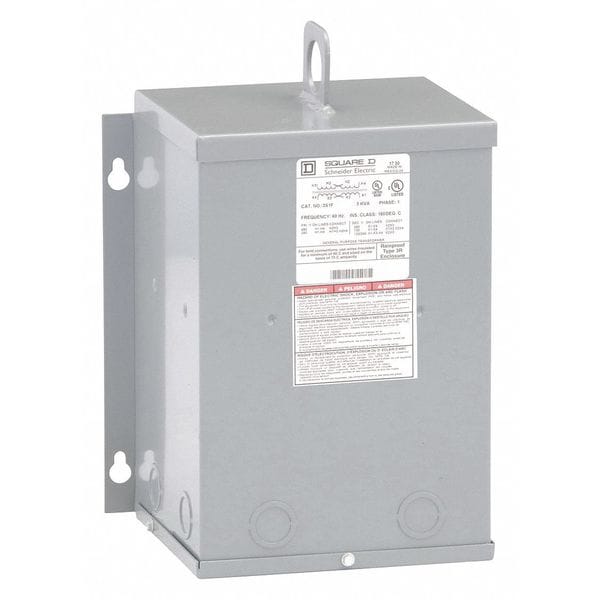

General Purpose Transformer, 3 kVA, NEMA 3R, 115°C, 120/240V AC, 240/480V AC
| CAD Available | Yes |
|---|---|
| Item | General Purpose Transformer |
| Input Voltage - Transformer | 240/480V AC |
| Mounting - Transformer | Wall |
| Hz - Electrical | 60 |
| IP Rating | IP54 |
| Outdoor Rated - Transformer | Yes |
| Winding Material | Aluminum |
| Color | Gray |
| Winding Material - Transformer | Aluminum |
| Depth | 6-1/2 in |
| Phase - Electrical | 1 |
| Standards | CSA Certified, cULus, REACH Regulation, RoHS, UL Listed |
| Enclosure Material | Steel |
| Height | 10-1/2 in |
| VA Rating - Transformer | 3 kVA |
| Enclosure Rating | NEMA 3R |
| Temp. Rise | 115 deg C |
| Manufacturers Warranty Length | 1 yr |
| Voltage Function - Transformer | Step Down |
| Enclosure Finish | Paint |
| Output Voltage - Transformer | 120/240V AC |
| Width | 8.7 in |
| Knockout Size - Transformer | 3/4 in, 1 in |
| Includes | Not Applicable |
| Insulation Max. Temp. | 180 °C |
| Product Certifications | UL Listed |
| Primary To Secondary Voltage | 240 x 480 V 120/240 V |
| Enclosure Code | 10A |
| Insulation Temperature | 356°F |
| Includes Knockouts | Knockouts Included |
| Sound Level | 37 dB |
| Package Quantity | 1 |
