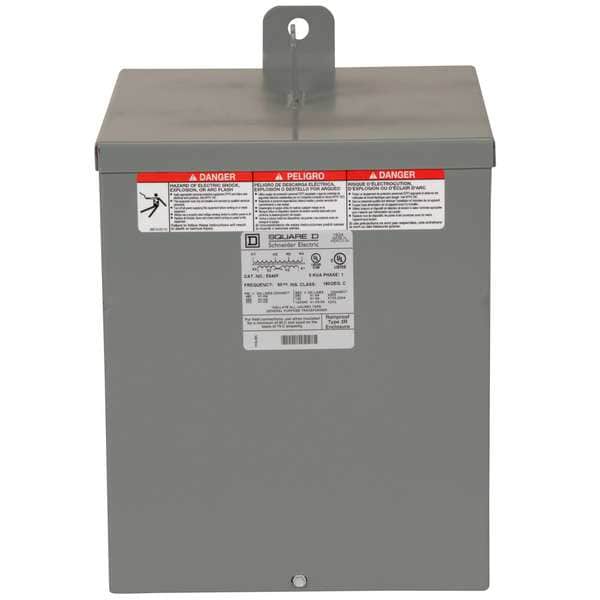

General Purpose Transformer, 5 kVA, NEMA 3R, 115°C, 120/240V AC, 480V AC
| Item | General Purpose Transformer |
|---|---|
| Input Voltage - Transformer | 480V AC |
| Mounting - Transformer | Wall |
| Hz - Electrical | 60 |
| IP Rating | IP14 |
| Outdoor Rated - Transformer | Yes |
| Winding Material | Aluminum |
| Color | Gray |
| Depth | 11.8 in |
| Knockout Size - Transformer | 3/4 in, 1 in |
| Standards | CSA Certified, REACH Regulation, RoHS, UL |
| Enclosure Material | Steel |
| Width | 9.8 in |
| Winding Material - Transformer | Aluminum |
| Manufacturers Warranty Length | 1 yr |
| Voltage Function - Transformer | Step Down |
| Output Voltage - Transformer | 120/240V AC |
| Phase - Electrical | 1 |
| Temp. Rise | 115 deg C |
| Enclosure Rating | NEMA 3R |
| VA Rating - Transformer | 5 kVA |
| Enclosure Finish | Paint |
| Height | 14.8 in |
| Includes | Not Applicable |
| Sound Level | 37 dB |
| Includes Knockouts | Knockouts Included |
| Package Quantity | 1 |
