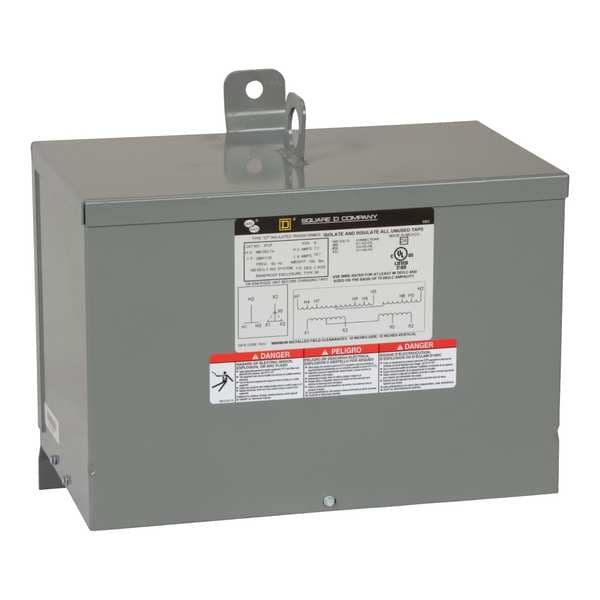

General Purpose Transformer, 6 kVA, NEMA 3R, 115°C, 120/208V AC, 480V AC
| Item | General Purpose Transformer |
|---|---|
| Input Voltage - Transformer | 480V AC |
| Mounting - Transformer | Wall |
| Hz - Electrical | 60 |
| IP Rating | IP54 |
| Outdoor Rated - Transformer | Yes |
| Winding Material | Copper |
| Color | Gray |
| Enclosure Rating | NEMA 3R |
| Standards | CSA Certified, cULus, REACH Regulation, RoHS, UL Listed |
| VA Rating - Transformer | 6 kVA |
| Width | 14-3/4 in |
| Enclosure Finish | Paint |
| Temp. Rise | 115 deg C |
| Winding Material - Transformer | Copper |
| Knockout Size - Transformer | 1 in, 3/4 in |
| Enclosure Material | Steel |
| Voltage Function - Transformer | Step Down |
| Output Voltage - Transformer | 120/208V AC |
| Height | 13-1/2 in |
| Depth | 9 in |
| Phase - Electrical | 3 |
| Includes | Not Applicable |
| Product Certifications | UL Listed, cULus || CSA |
| Number Of Tap-Offs | 2 5 % FCBN |
| Insulation Temperature | 180°C |
| Rated Power In Va | 6 kVA |
| Primary Voltage | 480 V delta 208Y/120 V |
| Sound Level | 37 dB |
| Includes Knockouts | Knockouts Included |
| Package Quantity | 1 |
