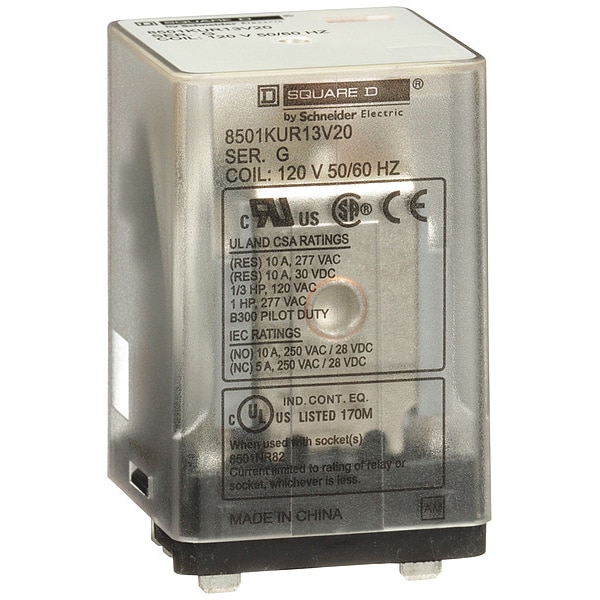

Relevador de uso general, 120VCA, 10A, 11 pines
| Item - Relay | General Purpose Relay |
|---|---|
| Mounting - Relay | Plug In |
| Number of Pins - Relay | 11 |
| AC Contact Rating - Relay | 10A @ 300V |
| Contact Material | Silver Alloy |
| Depth | 1.4 in |
| Body Depth - Relay | 1.4 in |
| Item | General Purpose Relay |
| Push To Test | No |
| Power Consumption - Relay | 3 VA |
| HP @ 240V | Not Rated |
| Standards | CE Certified, CSA Certified, UL Listed |
| Contact Form - Relay | 3PDT |
| Body Width - Relay | 1.4 in |
| Contact Form | 3PDT |
| Socket Code | C |
| DC Contact Rating - Relay | 5A @ 30V |
| HP @ 120V | 5/16 hp |
| Width | 1.37 in |
| Body Height - Relay | 2.66 in |
| Number of Pins | 11 |
| Status Indicator | Mechanical Flag |
| Overall Height - Relay | 2.66 in |
| Coil Volts | 120V AC |
| Flat Pin Width | 0.189 in |
| Coil Voltage | 120V AC |
| Maximum Switching Voltage | 300V AC, 30V DC |
| Electrical Connection | Quick Connect |
| Pin Shape | Flat |
| Mounting Style | Socket |
| Minimum Operating Temperature | -40 deg F |
| Contact Rating (AC) | 10 A @ 300 V |
| Body Height | 2.67 in |
| Current Rating | 10 A |
| Base Shape | Square |
| Series | Square D 8501K Series |
| Horsepower @ 240V AC | Not Rated |
| Compatible with Manufacturer Model Number | 8501NR82 |
| Sealing | Enclosed |
| Body Width | 1.37 in |
| Response Time | 20 msec |
| Body Depth | 2.12 in |
| Power Consumption | 3 VA |
| Overall Depth | 2.66 in |
| Motor Rated | Yes |
| Maximum Operating Temperature | 131 deg F |
| Contact Rating (DC) | 5 A @ 30 V |
| Push-To-Test Method | No Button |
| Horsepower @ 120V AC | 1/3 hp |
| Height | 2-1/4 in |
| Operating Time | 20 ms - pick-up || 20 ms - drop-out |
| Product Certifications | UL Listed || UL Recognized || CSA || CE |
| Contacts Material | silver alloy (AgNi) |
| [Uc] Control Circuit Voltage | 120 V AC |
| Product Or Component Type | relay |
| Local Signalling | no indicator |
| Relay Type | general purpose |
| Ambient Temperature Range - Operational | -40 to 131°F (-40 to 55°C) |
| Switch Function | 3PDT |
| Shape Of Pin | spade |
| Breaking Capacity | 3 A 120 V AC inductive control circuit UL 508; 1.5 A 240 V AC inductive control circuit UL 508; 10 A 277 V AC resistive control circuit UL 508; 10 A 30 V DC resistive control circuit UL 508 |
| Product Compatibility | 8501NR82 |
| Ambient Air Temperature For Operation | -40-131°F |
| Horsepower Rating | 1 hp 277 V AC; 0.33 hp 120 V AC |
| Rated Power In Hp | 1 hp 277 V AC || 0.33 hp 120 V AC |
| Mounting Support | socket |
| Rated Breaking Capacity | 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 10 A 30 V DC resistive control circuit UL 508 |
| Package Quantity | 1 |
