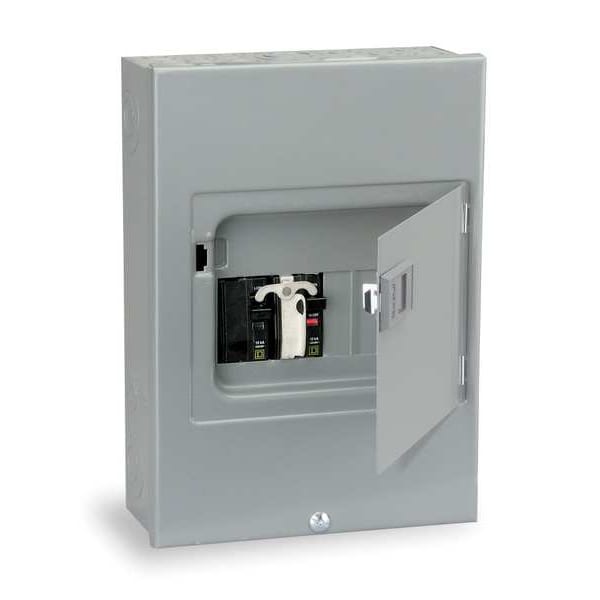

Generator Panel, 12-1/2 H x 8-7/8 In. W
| Item | Generator Panel |
|---|---|
| Number of Circuits | 8 |
| Height | 12-1/2 in |
| Mount | Surface |
| Max. Wire Size | 14 AWG |
| Color | Gray |
| Phase | 1 |
| Voltage | 120/240V |
| Depth | 3-3/4 in |
| Max. No. of Tandem Breakers | 4 |
| Number of Spaces | 4 |
| Enclosure Material | Steel |
| Ground Bar Kit | Mfr. No. PK7GTA |
| NEMA Enclosure Type | 1 |
| Width | 8-7/8 in |
| Includes | PK7GTA, QO217SB,QO250PSPD,HEPD25, HEPD50, HEPD80, HEPD25MKF, HEPD58MKF, QOB120, QO120DF, QO120, QO230, QO120GFI, QO120CAFI, QO220, QOM2200VH, QOB120GFI, QO115, QO2100, QO220GFI, QOB330, QOB120VH, QO240, QO2125, QOB360 |
| Standards | UL Listed |
| Material | tin plated aluminium busbar |
| Overall Width | 8-7/8 in |
| Maximum Wire Size | 8 AWG |
| Overall Height | 12-9/16 in |
| NEMA Enclosure Rating | 1 |
| Rated Voltage | 120/240V AC |
| Current Rating | 30 A |
| Maximum Number of Tandem Breakers | 4 |
| Prewired | Yes |
| Required Main Breaker | 30 A |
| Minimum Wire Size | 14 AWG |
| Overall Depth | 3-13/16 in |
| Manufacturer Warranty | 18 mo |
| Number Of Phases | 1 phase |
| Cover Type | surface cover with door |
| Device Composition | grounding bar |
| Product Certifications | UL Listed |
| Wiring Configuration | 3-wire |
| Electrical Connection | Lugs |
| Wire Size | AWG 14 to AWG 8 aluminium/copper |
| Short-Circuit Current | 10 kA |
| Busbar Material | Tin plated aluminium: busbar |
| Line Rated Current | 30 A |
| Awg Gauge | AWG 14...AWG 8 aluminium/copper |
| Surface Finish | baked enamel Gray |
| Ambient Air Temperature For Operation | -5 °C || 40 °C |
| Box Number | 4 |
| Number Of Tandem Circuit Breakers | 4 |
| Product Or Component Type | panel |
| Tightening Torque | Cover 20 lb.in |
| Nema Degree Of Protection | NEMA 1 indoor |
| Load Center Type | main breaker |
| Package Quantity | 1 |
