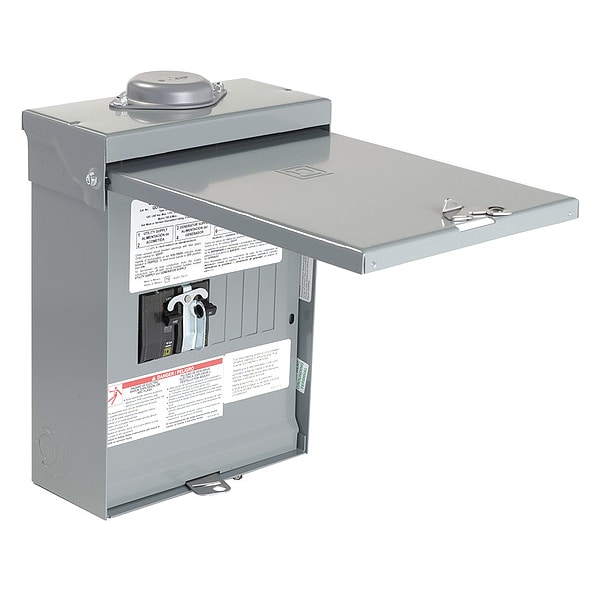

Generator panel, QO, 1 phase, 4 spaces, 8 circuits, 50A main breaker with interlock, NEMA3R, gnd bar, UL
| Item | Panel Transfer |
|---|---|
| Enclosure Material | Steel |
| Phase | 1 |
| Width | 226 mm |
| Material | tin plated aluminium busbar |
| Height | 321 mm |
| Depth | 103 mm |
| Load Center Type | main breaker |
| Number Of Spaces | 4 |
| Electrical Connection | Lugs |
| Awg Gauge | AWG 8...AWG 2 copper |
| Number Of Tandem Circuit Breakers | 4 |
| Surface Finish | baked enamel Gray |
| Number Of Circuits | 8 |
| Short-Circuit Current | 10 kA |
| Product Or Component Type | panel |
| Nema Degree Of Protection | NEMA 3R outdoor |
| Wiring Configuration | 3-wire |
| Cover Type | surface cover |
| Line Rated Current | 100 A |
| Enclosure Type | weatherproof enclosure |
| Ambient Air Temperature For Operation | -5 °C || 40 °C |
| Product Certifications | UL Listed |
| Device Composition | grounding bar |
| Package Quantity | 1 |
