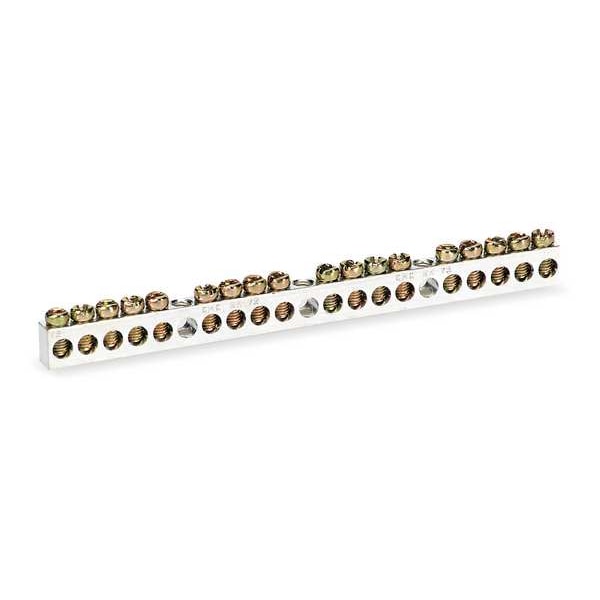

Ground Bar Kit, Square D QO, HOM, NQOD and NF Panelboards, 225A, 23 Poles
| Item | Ground Bar Kit |
|---|---|
| For Use With | Square D QO, HOM, NQOD and NF Panelboards |
| Amps | 225A |
| Number of Poles | 23 |
| Max. Wire Size | 4 AWG |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Number of Terminals | 23 |
| Material of Construction | Aluminum |
| Amps AC | 225 A |
| Type | Panelboard |
| Material | Aluminum |
| Includes | (2) Mounting Screws |
| Depth | 0.312 in |
| Height | 0.437 in |
| Mounting Style | direct mounting back of enclosure |
| Features | Mercury Free |
| Bar Length | 8.11 in |
| Provided Equipment | 2 screw |
| Product Line | QO |
| Wire Size | AWG 14 to AWG 4 copper; AWG 12 to AWG 4 aluminium |
| Tightening Torque | 30 lb.in; Mounting screw 30 lb.in; 20 lb.in, AWG 14 to AWG 10, copper; 20 lb.in, AWG 12 to AWG 10, aluminium; 35 lb.in, AWG 6 to AWG 4; 25 lb.in, AWG 8; 25 lb.in, AWG 14 to AWG 12, copper; 25 lb.in, AWG 12 to AWG 10, aluminium |
| Maximum Length Of Segment | 3.15 in (80 mm) |
| Package Quantity | 1 |
