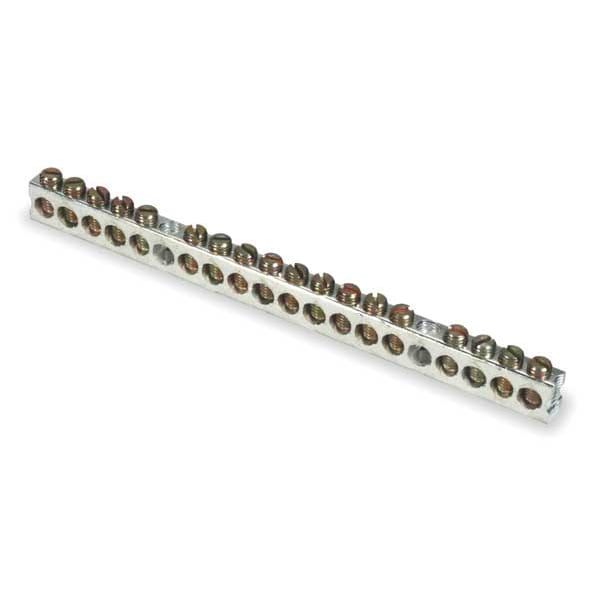

Ground Bar Kit, Square D QO, HOM, NQOD and NF Panelboards, 225A
| Item | Ground Bar Kit |
|---|---|
| For Use With | Square D QO, HOM, NQOD and NF Panelboards |
| Amps | 225A |
| Max. Wire Size | 1/0 AWG |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Amps AC | 200 A |
| Number of Terminals | 19 |
| Material of Construction | Copper |
| Type | Panelboard |
| Depth | 0.312 in |
| Includes | (1) Grounding Lug Connector Assembly, (2) Screws |
| Height | 0.437 in |
| Material | Copper |
| Mounting Style | mounting holes back of enclosure |
| Features | Mercury Free |
| Package Quantity | 1 |
