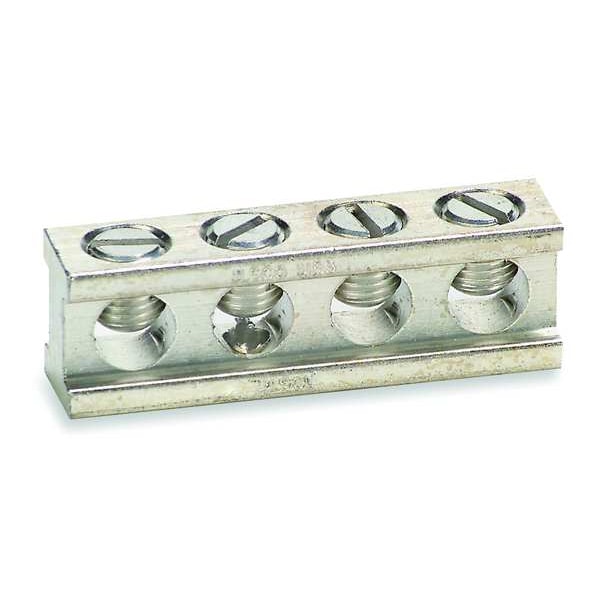

Kit de conexión a tierra, 60/100/200A
| Item | Ground Kit |
|---|---|
| Amps AC | 200A |
| Description/Special Features | 14 to 1/0 Al/Cu |
| For Use With | Type 82000 and DTU Series E Safety Switches |
| Product Type | Grounding Kit |
| Current Rating | 200 A |
| Duty | Heavy Duty |
| For Disconnect Switch Size | 200 A |
| Standards | UL 98 |
| Awg Gauge | AWG 14 to AWG 1/0 copper or aluminium |
| Product Or Component Type | safety switch grounding bar |
| Line Rated Current | 200 A 82000 |
| Tightening Torque | 35-35 lbf.in (AWG 14 to AWG 10) || 40-40 lbf.in (AWG 8) || 45-45 lbf.in (AWG 6 to AWG 4) || 50-50 lbf.in (AWG 3 to AWG 0) |
| Series Name | heavy duty |
| Package Quantity | 1 |
