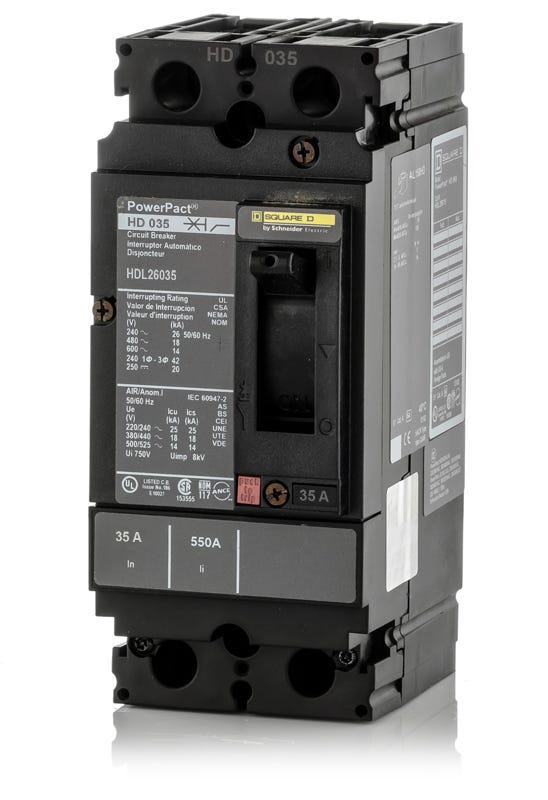

The Square D HDL26035 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 35 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 25kA@240VAC, 18kA@480VAC, 14kA@600VAC. The HDL26035 has a unit mounting type and includes long time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | HDL |
| Amperage | 35 |
| Voltage | 600VAC, 250VDC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Unit |
| Interrupting Rating | 25kA@240VAC, 18kA@480VAC, 14kA@600VAC |
| Frame Type | HDL |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Wire Gauge | AWG 14 to AWG 3/0 Aluminum/Copper |
| Standards | CE, UL, CSA, NEMA, NOM, IEC, RoHS |
| Temperature Rating | 40°C |
| Actuator Type | Toggle |
| Color | Black |
| Mpn | HDL26035 |
| Gtin | 785901458937 |
