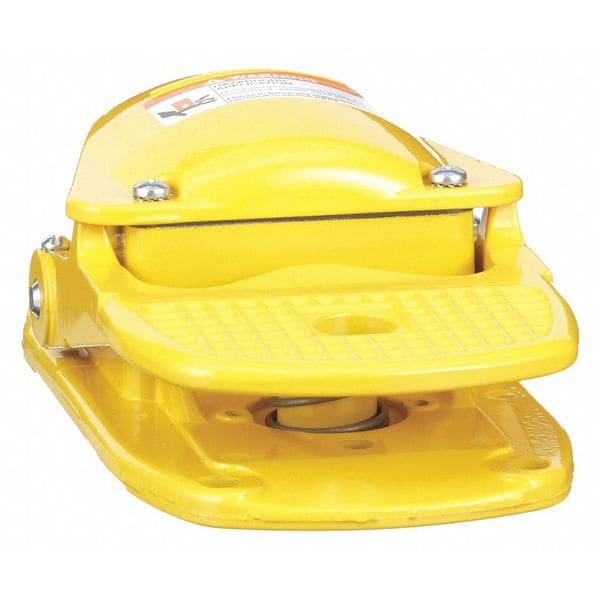

Interruptor de pie de servicio pesado, acción momentánea
| Item | Foot Switch |
|---|---|
| Contact Form | SPDT |
| NEMA Rating | 13, 2, 4 |
| Voltage Rating | 120 to 600V AC |
| Color | Yellow |
| Material | Aluminum |
| Width | 4-1/2 in |
| Depth | 3-7/8 in |
| Length | 8-9/16 in |
| Action | Momentary |
| Features | No Shielding |
| Current Rating | 15 |
| IP Rating | Not Rated |
| Standards | CSA, RoHS, UL Listed |
| Cord Length | Not Applicable |
| Length (Straight Wireway) | 8-9/16 in |
| Manufacturer Warranty Length | 18 mo |
| Overall Depth | 8-1/2 in |
| AC Contact Rating | 10 A @ 240 V, 15 A @ 120 V, 5 A @ 600 V, 6 A @ 480 V |
| Overall Height | 3.9 in |
| DC Contact Rating | 0.02 A @ 600 V, 0.2 A @ 250 V, 0.5 A @ 125 V |
| Number of Pedals | 1 |
| NEMA Enclosure Rating | 13, 2, 4 |
| Hazardous Location Specification | Not Rated |
| Includes Potentiometer | No Potentiometer Included |
| Series | 9002AW |
| Overall Width | 4.49 in |
| Horsepower | Not Applicable |
| Includes | Not Applicable |
| Termination Connection Type | Screw Terminal |
| Includes Foot Guard | No Guard Included |
| Power Source | Electrically Corded |
| Package Quantity | 1 |
