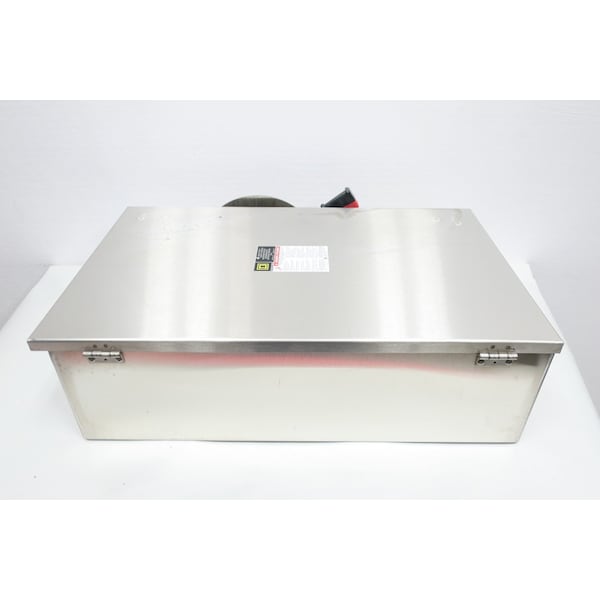

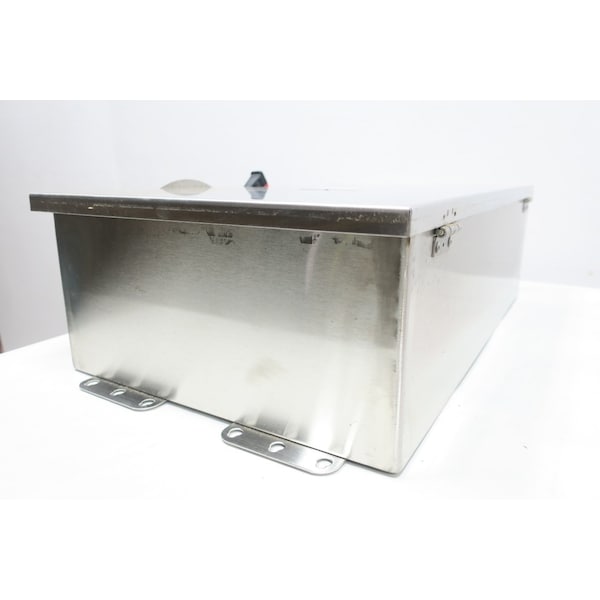

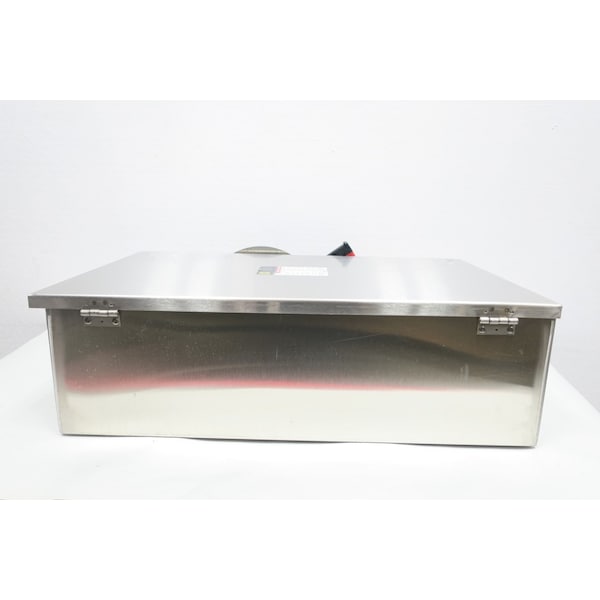

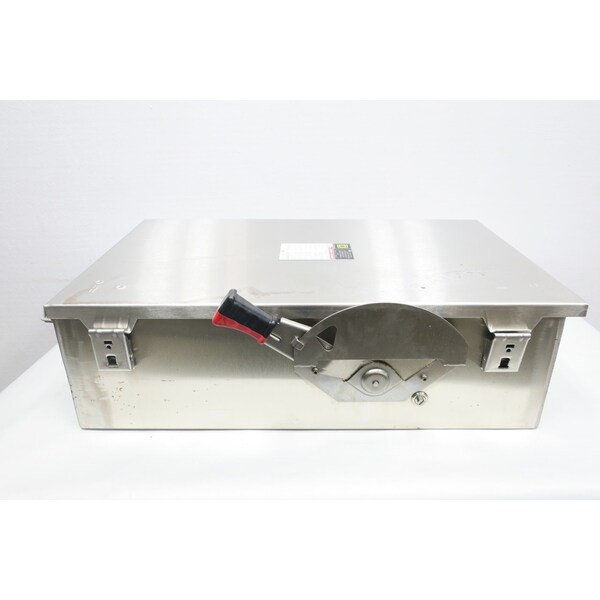

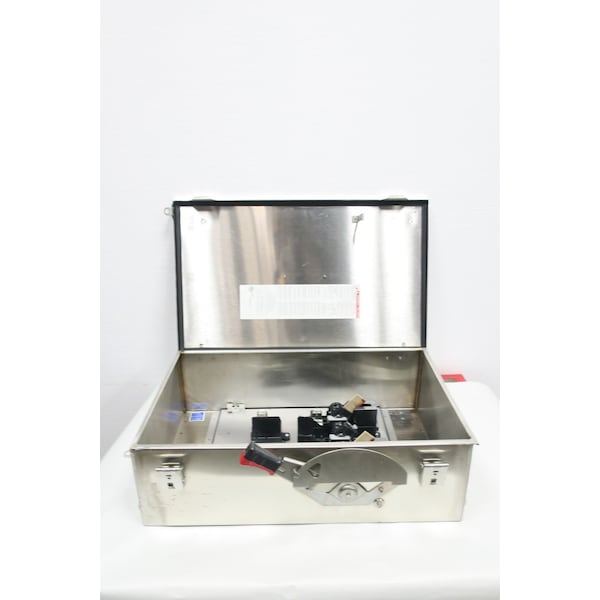

Interruptor de seguridad de servicio pesado de 2 polos, 200 amperios, 240 voltios de corriente alterna.
| Item | Single Throw Safety Switch |
|---|---|
| Phase | 3 phase |
| Fuse Type | J, H, K, R |
| Height | 29 in |
| Electrical Connection | Lugs |
| Depth | 8.88 in |
| Width | 17-3/4 in |
| Disconnect Type | Fusible disconnect |
| Current Rating | 200 A |
| Short-Circuit Current | 10 kA |
| Motor Power HP | 15 hp at 240 V AC 50-60 Hz for 1 phase motors; 25 hp at 240 V AC 50-60 Hz for 3 phase motors; 60 hp at 240 V AC 50-60 Hz for 3 phase motors; 40 hp at 250 V DC |
| Certifications | UL listed file E2875 |
| Tightening Torque | 275 lbf.in (31.07 N.m) 0.02 to 0.20 in² (13.3 to 127 mm²) (AWG 6 to 250 kcmil) |
| Factory Installed Neutral | None |
| Device Application | Heavy application |
| Enclosure Rating | NEMA 4/4X/5 stainless steel 304 |
| Wiring Configuration | 2-wire |
| Voltage Rating | 250 V DC, 240 V AC |
| Number Of Poles | 2 |
| Mounting Type | Surface |
| Duty Rating | Heavy duty |
| Wire Size | AWG 6 to 250 kcmil copper or aluminium |
| Package Quantity | 1 |
