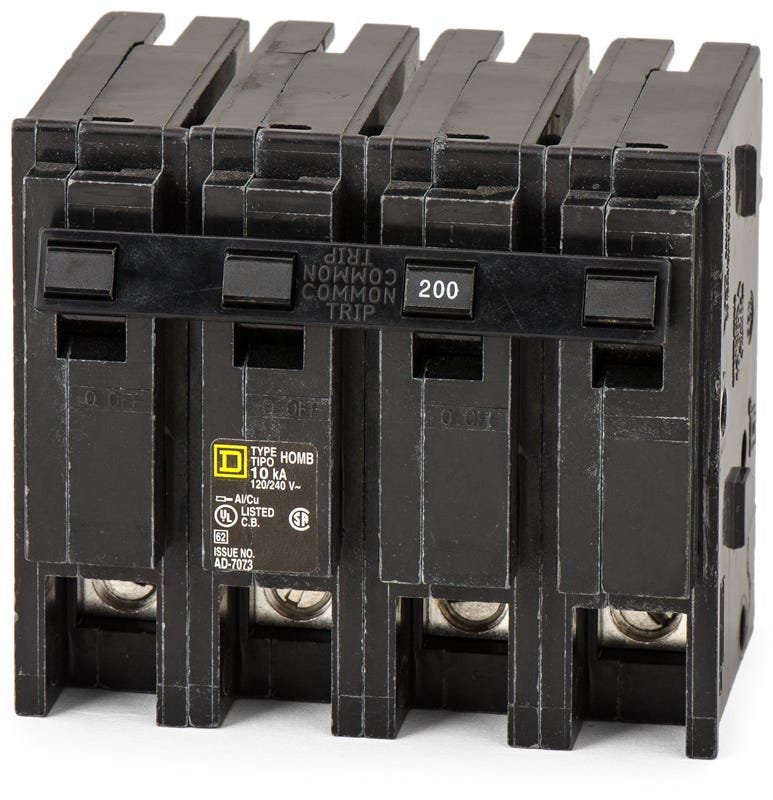

The Square D HOM2200 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 200 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 240V. The HOM2200 has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | Homeline |
| Amperage | 200 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Plug-In |
| Approval | UL |
| Interrupting Rating | 10kAIC at 240V |
| Frame Type | HOM |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Box Lugs |
| Wire Gauge | 1x AWG 4 to 300KCmil, Aluminum/Copper |
| Standards | HACR |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | Standard |
| Mpn | HOM2200 |
| Upc | 785901065883 |
| Gtin | 785901065883 |
