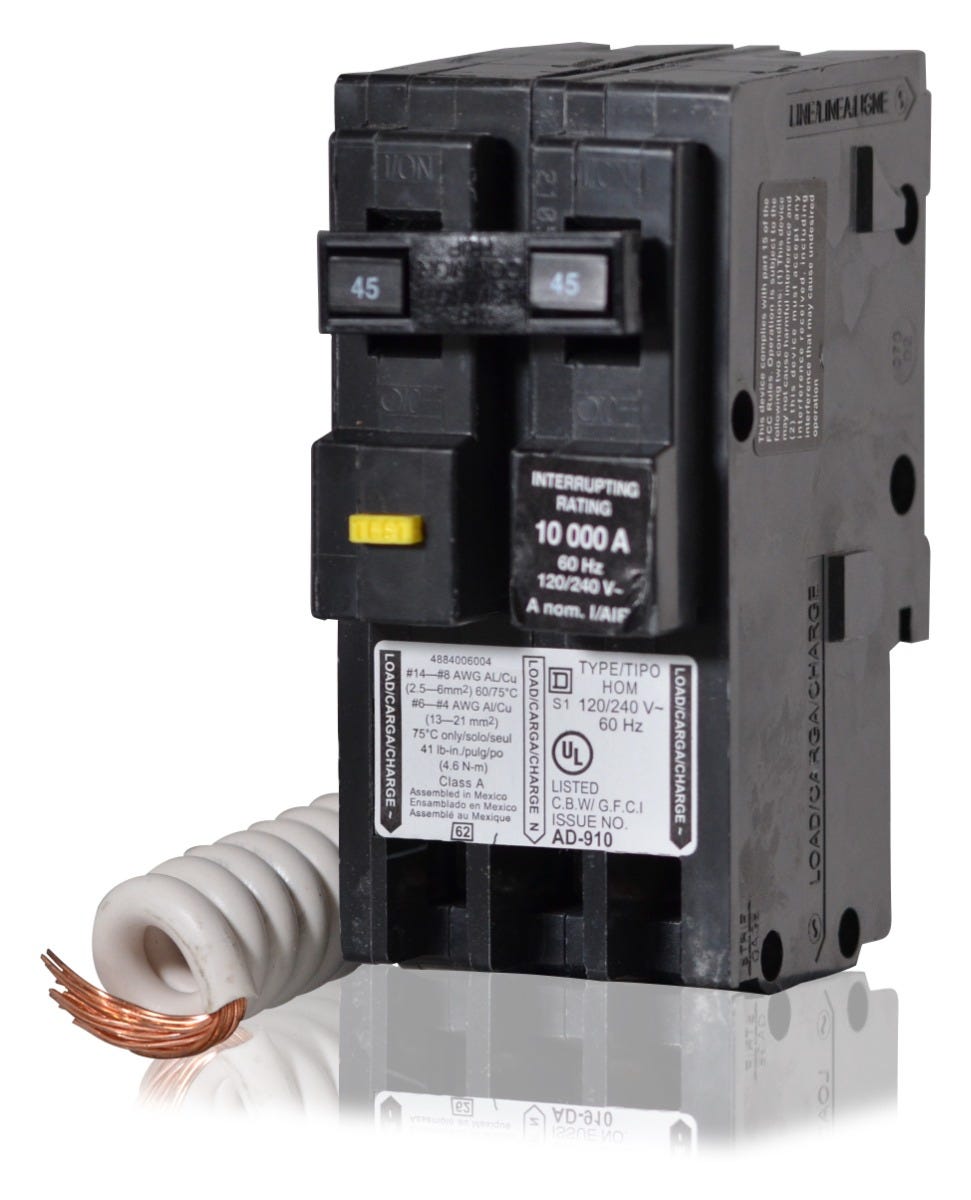

The Square D HOM245GFI is a 2 Pole molded case ground fault circuit breaker with a current rating of 45 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC@240V. The HOM245GFI has a plug-in mounting type and includes long time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | HOM |
| Amperage | 45 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Plug-In |
| Approval | UL |
| Interrupting Rating | 10kAIC@240V |
| Frame Type | HOM |
| Connection Type | Screw Clamp |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Wire Gauge | AWG 12 to AWG 4 Aluminum |
| Standards | HACR, RoHS |
| Temperature Rating | 104°F (40°C) |
| Circuit Breaker Type | GFCI |
| Mpn | HOM245GFI |
| Gtin | 785901508243 |
