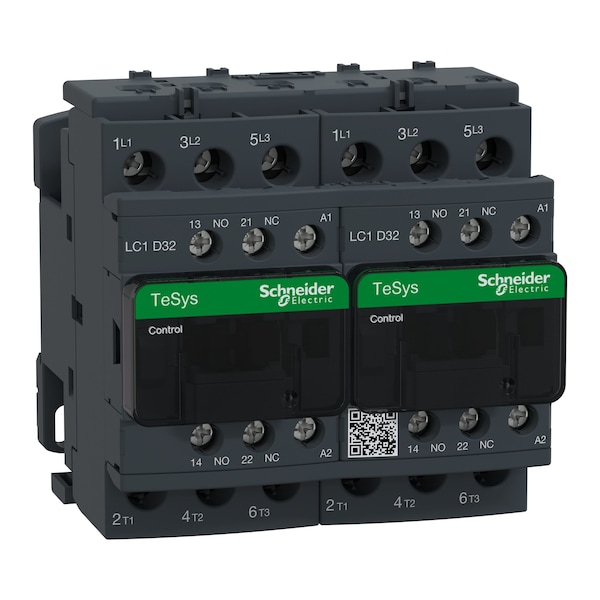

Contactador magnético IEC, 3 polos, 120 V CA, 32 A, Reversión: Sí
| Full Load Amps-Inductive | 32 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Action | Reversing |
| Full Load Amps-Resistive | 50 A |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| Reversing | Yes |
| HP @ 1 Phase - 230V | 5 |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 240V | 5 hp |
| Height | 3.54 in |
| Width | 3.54 in |
| HP @ 3 Phase - 208V | 10 hp |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 575V | 30 hp |
| Depth | 3.54 in |
| HP @ 3 Phase - 480V | 20 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| Standards | BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed |
| Auxiliary Contact Form | 1NO/1NC |
| NEMA Size | Not Applicable |
| Series | TeSys Deca |
| Switching Voltage | 17 V (Signalling Circuit) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Tightening Torque | 1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit) |
| Max. Temperature | 850°C |
| Hold VA | 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Features | Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar |
| Shock Resistance | 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit) |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit) |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Mechanical Durability | 15 Mcycles |
| Rated Voltage | 690V AC, 300V DC |
| Switching Current | 5 mA (Signalling Circuit) |
| Rated Short-Time Withstand Current | 60 A (at 40°C for 10 min Power Circuit), 138 A (at 40°C for 1 min Power Circuit), 260 A (at 40°C for 10 s Power Circuit), 430 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Fuse Amps | 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit) |
| Electrical Durability | 1.65 Mcycles (32 A, AC-3, Less than 440 V); 1.4 Mcycles (50 A, AC-1, Less than 440 V) |
| Operating Speed | 3600 cycles per hr |
| Mounts On | Plate, Rail |
| Rated Insulation Volts | 600/690V |
| Working Height | Up to 9,842.52 ft |
| Impulse Withstand Voltage | 6 kV |
| Application | Motor Control, Resistive Load |
| Impedance | 2 mOhm |
| IP Rating | IP20 |
| Electrical Connection | Screw Clamp Terminals |
| Inrush VA | 70 VA |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz) |
| Watts Loss | 2 to 3W |
| Non-Overlap Time | 1.5 msec |
| Rated Breaking Capacity | 550 A @ 440V |
| Net Weight | 0.797 kg |
| Operating Time | 12 to 22 ms (Closing), 4 to 19 ms (Opening) |
| Fire Rating | UL 94 V1 |
| Includes Protective Cover | Yes |
| Overvoltage Category | CAT III |
| Max. Operating Watts | 7.5 kW (at 220 to 230V AC 50 Hz), 15 kW (at 380 to 400V AC 50 Hz), 15 kW (at 415 to 440V AC 50 Hz), 18.5 kW (at 500V AC 50 Hz), 18.5 kW (at 660 to 690V AC 50 Hz) |
| Electrical Operating Durability | 1,400,000, 1,650,000 |
| Overall Depth | 3.62 in |
| NEMA Enclosure Rating | No Enclosure |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Number of Normally Open Main Contacts | 3 |
| Full Load Current - Resistive | 50 A |
| Mechanical Operating Durability | 15,000,000 |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Number of Auxillary Contacts | 2 |
| Terminal Connection Type | Screw Clamp Terminals |
| Overall Height | 3.35 in |
| Horsepower @ Three Phase - 480V AC | 20 HP |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Contactor Style | IEC |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Frequency | 50/60 Hz |
| Maximum Voltage Rating | 690 V AC |
| Mounting Style | DIN Rail, Plate |
| Overall Width | 3.54 in |
| Reversing Capability | Reversing |
| Horsepower @ Three Phase - 600V AC | 30 HP |
| Includes Auxiliary Contacts | Yes |
| Coil Voltage | 120V AC |
| Full Load Current - Inductive | 32 A |
| Minimum Operating Temperature | -40 deg F |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Embedded Surge Suppressor | No |
| Maximum Operating Temperature | 140 deg F |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Utilisation Category | AC-3; AC-1 |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Ambient Air Temperature For Operation | -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| IRMS Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 550 A at 440 V for power circuit conforming to IEC 60947 |
| Average Impedance | 2 mOhm - Ith 50 A 50 Hz for power circuit |
| IP Degree Of Protection | IP20 front face IEC 60529 |
| Maximum Operating Rate | 3600 cyc/h 140°F (60°C) |
| Rated Insulation Voltage | Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL |
| Product Or Component Type | Reversing contactor |
| Protective Treatment | THIEC 60068-2-30 |
| Interlocking Type | Mechanical |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Device Presentation | Preassembled with reversing power busbar |
| Pollution Degree | 3 |
| Coil Technology | Without built-in suppressor module |
| Motor Power HP | 2 hp at 115 V AC 60 Hz for 1 phase motors; 5 hp at 230/240 V AC 60 Hz for 1 phase motors; 7.5 hp at 200/208 V AC 60 Hz for 3 phase motors; 10 hp at 230/240 V AC 60 Hz for 3 phase motors; 20 hp at 460/480 V AC 60 Hz for 3 phase motors; 30 hp at 575/600 V AC 60 Hz for 3 phase motors |
| Flame Retardance | V1 conforming to UL 94 |
| Auxiliary Contacts Type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1 |
| Insulation Resistance | Greater than 10 MOhm for signalling circuit |
| Power Pole Contact Composition | 3 NO |
| Connections - Terminals | Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible with cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)solid; Control circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)solid; Power circuit screw clamp terminals 1 0.00 to 0.02 in² (2.5 to 10 mm²)flexible without cable end; Power circuit screw clamp terminals 2 0.00 to 0.02 in² (2.5 to 10 mm²)flexible without cable end; Power circuit screw clamp terminals 1 0.00 to 0.02 in² (1 to 10 mm²)flexible with cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1.5 to 6 mm²)flexible with cable end; Power circuit screw clamp terminals 1 0.00 to 0.02 in² (1.5 to 10 mm²)solid; Power circuit screw clamp terminals 2 0.00 to 0.02 in² (2.5 to 10 mm²)solid |
| Conventional Free Air Thermal Current | 10 A (at 140°F (60°C)) for signalling circuit; 50 A (at 140°F (60°C)) for power circuit |
| Heat Dissipation | 2 to 3 W 50/60 Hz |
| Contactor Application | Motor control Resistive load |
| Mechanical Robustness | Vibrations contactor open2 Gn, 5 to 300 Hz; Vibrations contactor closed4 Gn, 5 to 300 Hz; Shocks contactor closed15 Gn for 11 ms; Shocks contactor open8 Gn for 11 ms |
| Hold-In Power Consumption in VA | 7.5 VA 60 Hz cos phi 0.3 (at 68°F (20°C)); 7 VA 50 Hz cos phi 0.3 (at 68°F (20°C)) |
| Climatic Withstand | IACS E10; IEC 60947-1 Annex Q category D |
| Motor Power KW | 7.5 kW at 220 to 230 V AC 50 Hz; 15 kW at 380 to 400 V AC 50 Hz; 15 kW at 415 to 440 V AC 50 Hz; 18.5 kW at 500 V AC 50 Hz; 18.5 kW at 660 to 690 V AC 50 Hz |
| Product Certifications | UL; CSA; RINA; GOST; CCC; DNV; LROS (Lloyds register of shipping); GL; BV; UKCA |
| Poles Description | 3P |
| Power Dissipation Per Pole | 2 W AC-3; 5 W AC-1 |
| Rated Operational Voltage | Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC |
| Control Circuit Voltage | 120 V AC 50/60 Hz |
| Fire Resistance | 1562°F IEC 60695-2-1 |
| Rated Operational Current | 32 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 50 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit |
| Rated Short Time Withstand Current | 60 A 104°F (40°C) - 10 min for power circuit; 138 A 104°F (40°C) - 1 min for power circuit; 260 A 104°F (40°C) - 10 s for power circuit; 430 A 104°F (40°C) - 1 s for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit |
| Mounting Support | Rail, Plate |
| Inrush Power in VA | 70 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 70 VA 50 Hz cos phi 0.75 (at 68°F (20°C)) |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Control Circuit Type | AC 50/60 Hz |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1; 63 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 63 A gG at Less than or Equal to 690 V coordination type 2 for power circuit |
| Ambient Air Temperature For Storage | -76 to 176°F |
| Front Cover | With |
| Product Name | TeSys Deca |
| Package Quantity | 1 |
