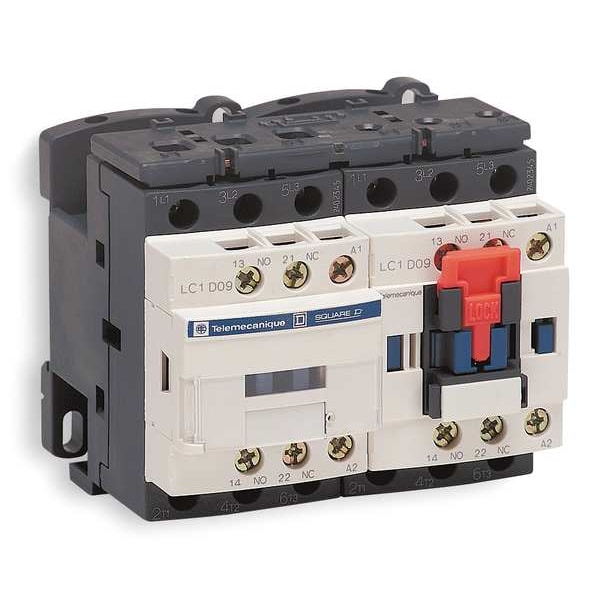

Contactos magnéticos IEC, 3 polos, 24 V DC, 12 A, inversión: Sí.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 12 A |
| Full Load Amps-Resistive | 25 A |
| Action | Reversing |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| Reversing | Yes |
| HP @ 1 Phase - 230V | 2 |
| HP @ 1 Phase - 120V | 1 hp |
| Height | 3.54 in |
| HP @ 1 Phase - 240V | 2 hp |
| Width | 3.54 in |
| HP @ 3 Phase - 208V | 3 hp |
| HP @ 3 Phase - 575V | 10 hp |
| HP @ 3 Phase - 240V | 3 hp |
| Depth | 3.54 in |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 7 1/2 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO/1NC |
| Standards | BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed |
| Includes | Electrical Interlock |
| Series | TeSys Deca |
| NEMA Size | Not Applicable |
| Net Weight | 1.027 kg |
| Mounts On | Plate, Rail |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Impulse Withstand Voltage | 6 kV |
| Electrical Durability | 2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V) |
| Rated Short-Time Withstand Current | 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Rated Breaking Capacity | 250 A @ 440V |
| Impedance | 2.5 mOhm |
| Rated Voltage | 690V AC, 300V DC |
| IP Rating | IP20 |
| Working Height | Up to 9,842.52 ft |
| Operating Time | 53.55 to 72.45 ms (Closing), 16 to 24 ms (Opening) |
| Mechanical Durability | 30 Mcycles |
| Control Circuit Voltage Limits | Drop-Out DC: 0.1 to 0.25 Uc (at -40 to 70°C), Operational DC: 0.7 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C) |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Features | Built-In Bi-Directional Peak Limiting Diode Suppressor; Preassembled with Reversing Power Busbar |
| Electrical Connection | Screw Clamp Terminals |
| Operating Speed | 3600 cycles per hr |
| Rated Making Capacity | 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit) |
| Fuse Amps | 10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Non-Overlap Time | 1.5 msec |
| Environmental Attributes | Mercury Free, PVC Free, Pollution Degree 3 |
| Rated Insulation Volts | 600/690V |
| Includes Protective Cover | Yes |
| Tightening Torque | 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit) |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Application | Motor Control, Resistive Load |
| Max. Operating Watts | 3 kW (at 220 to 230V AC 50 Hz), 5.5 kW (at 380 to 400V AC 50 Hz), 5.5 kW (at 415 to 440V AC 50 Hz), 7.5 kW (at 500V AC 50 Hz), 7.5 kW (at 660 to 690V AC 50 Hz) |
| Fire Rating | UL 94 V1 |
| Overvoltage Category | CAT III |
| Max. Temperature | 850°C |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Switching Current | 5 mA (Signalling Circuit) |
| NEMA Enclosure Material | Not Applicable |
| Maximum Operating Temperature | 140 deg F |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Number of Normally Open Main Contacts | 3 |
| Horsepower @ Three Phase - 480V AC | 7.5 HP |
| NEMA Enclosure Rating | No Enclosure |
| Overall Depth | 3.74 in |
| Coil Voltage | 24V DC |
| Includes Auxiliary Contacts | Yes |
| Maximum Voltage Rating | 690 V AC |
| Overall Height | 3.03 in |
| Overall Width | 3.54 in |
| Reversing Capability | Reversing |
| Mounting Style | DIN Rail, Plate |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Number of Auxillary Contacts | 2 |
| Frequency | 50/60 Hz |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Full Load Current - Inductive | 12 A |
| Contactor Style | IEC |
| Embedded Surge Suppressor | Yes |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Minimum Operating Temperature | -40 deg F |
| Mechanical Operating Durability | 30,000,000 |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Terminal Connection Type | Screw Clamp Terminals |
| Full Load Current - Resistive | 25 A |
| Electrical Operating Durability | 2,000,000, 800,000 |
| Front Cover | With |
| Contactor Application | Motor control Resistive load |
| Insulation Resistance | Greater than 10 MOhm for signalling circuit |
| Control Circuit Type | DC standard |
| Fire Resistance | 1562°F IEC 60695-2-1 |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Motor Power HP | 1 hp at 115 V AC 60 Hz for 1 phase motors; 2 hp at 230/240 V AC 60 Hz for 1 phase motors; 3 hp at 200/208 V AC 60 Hz for 3 phase motors; 3 hp at 230/240 V AC 60 Hz for 3 phase motors; 7.5 hp at 460/480 V AC 60 Hz for 3 phase motors; 10 hp at 575/600 V AC 60 Hz for 3 phase motors |
| Power Pole Contact Composition | 3 NO |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Rated Operational Voltage | Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC |
| Conventional Free Air Thermal Current | 10 A (at 140°F (60°C)) for signalling circuit; 25 A (at 140°F (60°C)) for power circuit |
| Hold-In Power Consumption in W | 5.4 W 68°F (20°C) |
| Interlocking Type | Mechanical |
| Climatic Withstand | IACS E10; IEC 60947-1 Annex Q category D |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Coil Technology | Built-in bidirectional peak limiting diode suppressor |
| IP Degree Of Protection | IP20 front face IEC 60529 |
| Utilisation Category | AC-1; AC-3; AC-3e |
| Mechanical Robustness | Vibrations contactor open2 Gn, 5 to 300 Hz; Vibrations contactor closed4 Gn, 5 to 300 Hz; Shocks contactor open10 Gn for 11 ms; Shocks contactor closed15 Gn for 11 ms |
| Power Dissipation Per Pole | 1.56 W AC-1; 0.36 W AC-3; 0.36 W AC-3e |
| Time Constant | 28 msec |
| Poles Description | 3P |
| Inrush Power in W | 5.4 W 68°F (20°C)) |
| Rated Short Time Withstand Current | 30 A 104°F (40°C) - 10 min for power circuit; 61 A 104°F (40°C) - 1 min for power circuit; 105 A 104°F (40°C) - 10 s for power circuit; 210 A 104°F (40°C) - 1 s for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit |
| Connections - Terminals | Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible with cable end; Power circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)solid; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)solid; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)flexible without cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)flexible with cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²)flexible with cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²)solid; Control circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²)solid |
| Rated Operational Current | 25 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 12 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 12 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit |
| Motor Power KW | 3 kW at 220 to 230 V AC 50 Hz; 5.5 kW at 380 to 400 V AC 50 Hz; 5.5 kW at 415 V AC 50 Hz; 5.5 kW at 440 V AC 50 Hz; 7.5 kW at 500 V AC 50 Hz; 7.5 kW at 660 to 690 V AC 50 Hz |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Auxiliary Contacts Type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1 |
| Protective Treatment | THIEC 60068-2-30 |
| IRMS Rated Making Capacity | 250 A at 440 V for power circuit conforming to IEC 60947; 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Product Name | TeSys, TeSys D Deca |
| Pollution Degree | 3 |
| Ambient Air Temperature For Storage | -76 to 176°F |
| Product Certifications | DNV; CSA; CCC; UL; GL; LROS (Lloyds register of shipping); BV; RINA; GOST; UKCA |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1; 40 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 25 A gG at Less than or Equal to 690 V coordination type 2 for power circuit |
| Rated Insulation Voltage | Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL |
| Device Presentation | Preassembled with reversing power busbar |
| Maximum Operating Rate | 3600 cyc/h 140°F (60°C) |
| Ambient Air Temperature For Operation | -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Mounting Support | Rail, Plate |
| Flame Retardance | V1 conforming to UL 94 |
| Product Or Component Type | Reversing contactor |
| Package Quantity | 1 |
