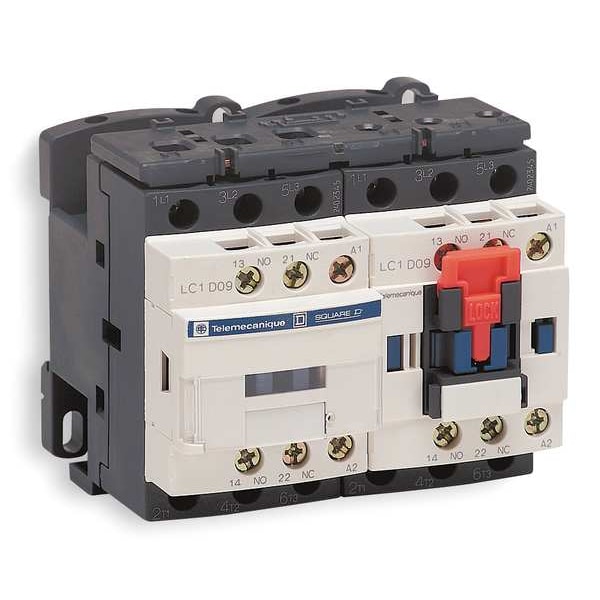

Contactador Magnético IEC, 3 Polos, 24 V DC, 25 A, Reversible: Sí
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 25 A |
| Action | Reversing |
| Full Load Amps-Resistive | 40 A |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 230V | 3 |
| Height | 3.54 in |
| HP @ 1 Phase - 240V | 3 hp |
| Width | 3.54 in |
| HP @ 3 Phase - 208V | 5 hp |
| Depth | 3.54 in |
| HP @ 3 Phase - 575V | 20 hp |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| HP @ 3 Phase - 480V | 15 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO/1NC |
| Includes | Electrical Interlock |
| Standards | BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed |
| Series | TeSys Deca |
| NEMA Size | Not Applicable |
| Tightening Torque | 1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit) |
| Fire Rating | UL 94 V1 |
| Electrical Connection | Screw Clamp Terminals |
| Operating Speed | 3600 cycles per hr |
| Switching Voltage | 17 V (Signalling Circuit) |
| Impedance | 2 mOhm |
| Shock Resistance | 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed) |
| Net Weight | 1.117 kg |
| Operating Time | 53.55 to 72.45 ms (Closing), 16 to 24 ms (Opening) |
| Fuse Amps | 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit) |
| Environmental Attributes | Mercury Free, PVC Free, Pollution Degree 3 |
| Features | Built-In Bi-Directional Peak Limiting Diode Suppressor; Preassembled with Reversing Power Busbar |
| Impulse Withstand Voltage | 6 kV |
| Working Height | Up to 9,842.52 ft |
| IP Rating | IP20 |
| Electrical Durability | 1.65 Mcycles (25 A, AC-3, Less than 440 V); 1.4 Mcycles (40 A, AC-1, Less than 440 V) |
| Includes Protective Cover | Yes |
| Rated Insulation Volts | 600/690V |
| Application | Motor Control, Resistive Load |
| Control Circuit Voltage Limits | Drop-Out DC: 0.1 to 0.25 Uc (at -40 to 70°C), Operational DC: 0.7 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C) |
| Rated Short-Time Withstand Current | 50 A (at 40°C for 10 min Power Circuit), 120 A (at 40°C for 1 min Power Circuit), 240 A (at 40°C for 10 s Power Circuit), 380 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Rated Breaking Capacity | 450 A @ 440V |
| Max. Temperature | 850°C |
| Rated Voltage | 690V AC, 300V DC |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Mounts On | Plate, Rail |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 40 A (at 60°C Power Circuit) |
| Max. Operating Watts | 5.5 kW (at 220 to 230V AC 50 Hz), 11 kW (at 380 to 400V AC 50 Hz), 11 kW (at 415 to 440V AC 50 Hz), 15 kW (at 500V AC 50 Hz), 15 kW (at 660 to 690V AC 50 Hz) |
| Switching Current | 5 mA (Signalling Circuit) |
| Mechanical Durability | 30 Mcycles |
| Overvoltage Category | CAT III |
| Non-Overlap Time | 1.5 msec |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit) |
| Terminal Connection Type | Screw Clamp Terminals |
| Overall Width | 3.54 in |
| Overall Height | 3.35 in |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Embedded Surge Suppressor | Yes |
| Full Load Current - Inductive | 25 A |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Mechanical Operating Durability | 30,000,000 |
| Overall Depth | 3.98 in |
| NEMA Enclosure Material | Not Applicable |
| Electrical Operating Durability | 1,400,000, 1,650,000 |
| Number of Normally Open Main Contacts | 3 |
| Horsepower @ Three Phase - 480V AC | 15 HP |
| Coil Voltage | 24V DC |
| Full Load Current - Resistive | 40 A |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Maximum Voltage Rating | 690 V AC |
| Maximum Operating Temperature | 140 deg F |
| Number of Auxillary Contacts | 2 |
| Reversing Capability | Reversing |
| Contactor Style | IEC |
| Horsepower @ Three Phase - 600V AC | 20 HP |
| Includes Auxiliary Contacts | Yes |
| Minimum Operating Temperature | -40 deg F |
| Horsepower @ Three Phase - 208V AC | 5 HP |
| Mounting Style | DIN Rail, Plate |
| Package Quantity | 1 |
