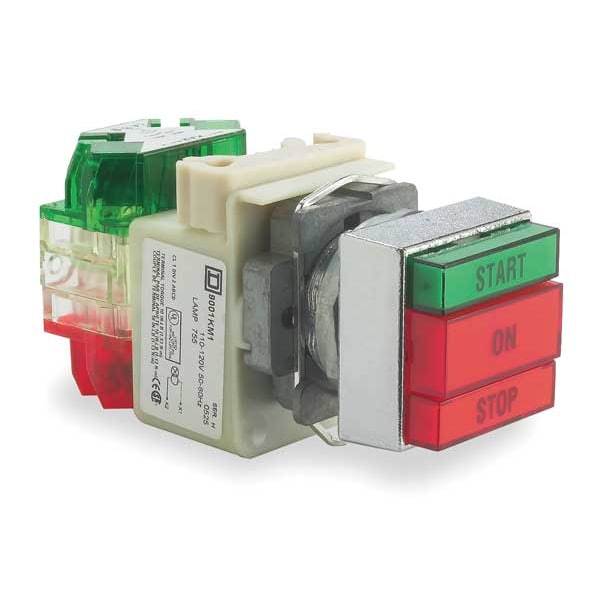

Operador multifuncional iluminado con contacto, 30 mm, 1NA/1NC, cuadrado.
| Item | Illuminated Push Button |
|---|---|
| Number of Heads | 3 |
| Basic Material | Metal |
| Contact Form | 1NO/1NC |
| Features | Self-Grounding, Finger-Safe Terminals |
| Legend/Background Color | Red, Black, Green |
| Legend | Stop, Start, On |
| Type of Operator | (1) Light, (2) Flush Buttons |
| Lamp Voltage | 120V AC |
| Lamp Type | Incandescent |
| Number of Operators | 3 |
| NEMA Rating | 13, 4, 4X |
| Series | 9001K |
| Size | 30 mm |
| Standards | REACH, RoHS, WEEE |
| Contact Rating | 10A @ 600V AC |
| Action | Momentary |
| Shape | Square |
| Head Material | Metal |
| Bezel Material | Metal |
| Includes | Incandescent Lamp |
| Lamp Module Voltage | 120 V AC |
| Lamp Module Type | Full Voltage |
| Replacement Lamp | Mfr. No. 25501-01-020 |
| IP Rating | IP20, IP66 |
| NEMA Contact Rating Designation | A600, Q600 |
| Terminal Connection | Screw Clamp |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| Legend Color | Black |
| Product Type | Push Button Operators |
| Operator Material | Metal |
| Legend Background Color | Red, Green |
| Operator Illumination | Illuminated |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2 |
| Panel Cutout Diameter | 30 mm |
| Operating Temperature - Maximum | 140 deg F |
| Operator Voltage Rating - Maximum | 600 V AC |
| NEMA Enclosure Rating | 4, 12, 13, 3, 1, 3R, 2 |
| Lamp Voltage - Maximum | 120 V AC |
| Head Color | Green |
| Manufacturer Warranty Length | 18 mo |
| Mushroom Head Diameter | Not Applicable |
| Push Button Style | Flush |
| Number of Indicator Lights | 0 |
| Maintained Action Release | Not Applicable |
| Operating Temperature - Minimum | -22 deg F |
| Package Quantity | 1 |
